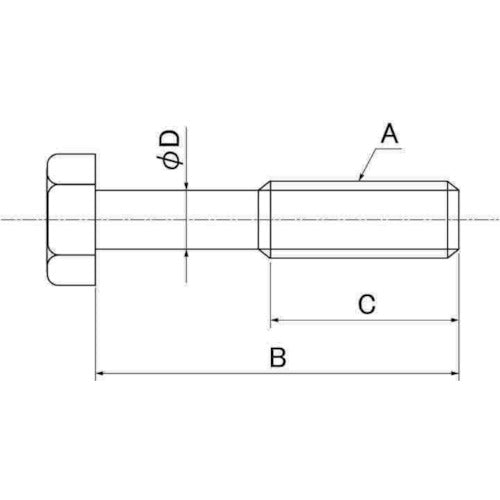

Catalog number: B0-02-J090-0050-0180-00 Features: ●The body is thinner than the threaded part and catches in the screw hole, so the screw will not fall out. ●Prevents the screw from falling out when removing the cover. Uses: ●For fixing protective covers and inspection covers for equipment and devices. ●Prevents the screw from falling out when removing the cover. Specifications: ●Dimensions (mm) d: M5 ●Dimensions (mm) L: 18 ●Thread pitch (mm): 0.8 ●Threaded part length (mm): 6 ●Strength category: Equivalent to A2-50 ●Body diameter (mm): 3.8 ●Thread diameter (mm): M5 ●Strength category: Equivalent to A2-50 Material/Finish: ●Stainless steel (SUS303, SUS304, SUSXM7, etc.)
