サンコーインダストリー（株）

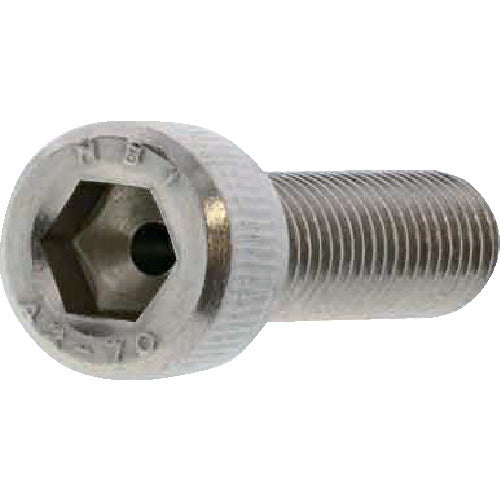

SUNCO SUS Air Release Cap (Full Thread) 5 x 45 x 45 (100 pieces) A0-02-J000-0050-0450-00 1 box
SUNCO SUS Air Release Cap (Full Thread) 5 x 45 x 45 (100 pieces) A0-02-J000-0050-0450-00 1 box
Regular price
¥62,370
Regular price
Sale price
¥62,370
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

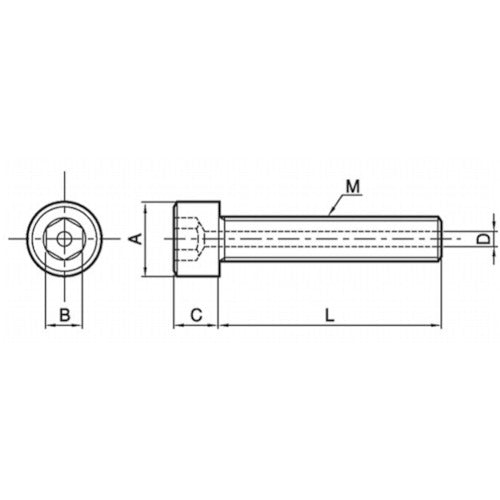

Catalog number: A0-02-J000-0050-0450-00 Features: ●Through holes are provided to allow air and gas to escape from the bottom of the screw holes. ●Used in vacuum equipment, vacuum containers, semiconductor manufacturing equipment, electron microscopes, etc. Applications: ●For use in vacuum equipment, vacuum containers, semiconductor manufacturing equipment, electron microscopes, etc. Specifications: ●Dimensions (mm) d: M5 ●Dimensions (mm) L: 45 ●Thread pitch (mm): 0.8 ●Through hole (mm): 1.5 ●Hexagonal section height (mm): 5.0 Material/Finish: ●Stainless steel (SUS303, SUS304, SUSXM7, etc.)
