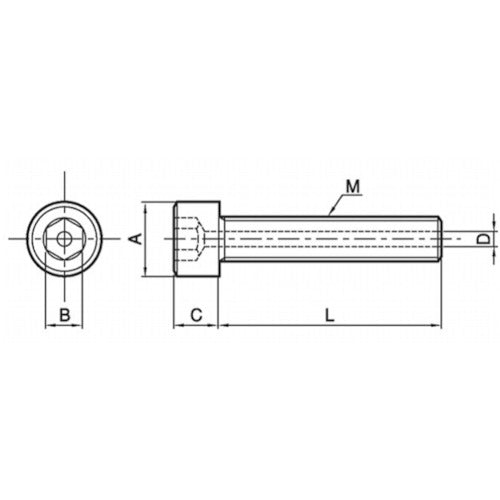

Catalog number: A0-02-J000-0080-0450-00 Features: ●Through holes are provided to allow air and gas trapped at the bottom of the screw holes to escape. ●Used in vacuum equipment, vacuum containers, semiconductor manufacturing equipment, electron microscopes, etc. Applications: ●For use in vacuum equipment, vacuum containers, semiconductor manufacturing equipment, electron microscopes, etc. Specifications: ●Dimensions (mm) d: M8 ●Dimensions (mm) L: 45 ●Thread pitch (mm): 1.25 ●Through hole (mm): 2.0 ●Hexagonal section height (mm): 8.0 Material/Finish: ●Stainless steel (SUS303, SUS304, SUSXM7, etc.)
