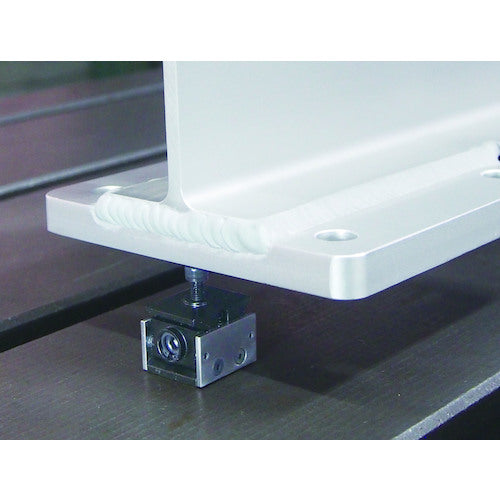

Catalogue number: AMB20M Features: ●Magnets are attached so the position will not shift due to vibration. ●Low floor so it can accommodate depths of 30mm or less that cannot be reached with screw supports. ●Operation from the side allows operation in deep spaces. Applications: ●For preventing vibration and leveling of workpieces. Specifications: ●Height (mm): 20-26 ●Load capacity (kN): 8 ●Top diameter (mm): 10 ●Screw diameter: M5 ●Total height (mm): 20-26 ●Width (mm): 37 ●Depth (mm): 28 ●Stroke (mm): 6 Material/Finish: ●Special steel ●Black dyeing Set contents/Accessories: ●Hexagonal wrench (hexagonal two-sided width: 4mm)
