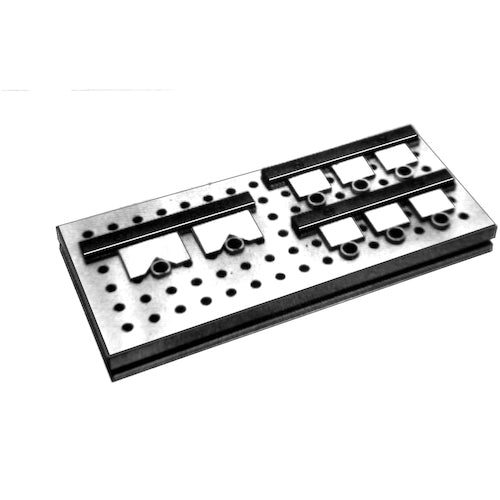

SUPER Screw Lock (M12) SR12 1 piece

Catalogue number: SR12 Features: ●Ideal for clamping thin workpieces and mass production. ●Can easily clamp irregularly shaped workpieces. ●Clamping operation is simple and speedy. ●Material and hardness suitable for repetitive work, no wear on the contact surface of the workpiece or clamp ring. Applications: ●For clamping thin workpieces. Specifications: ●Width (mm): 30 ●Height (mm): 9 ●Screw dimensions: M12 x 1.75 ●Tightening force (kN): 6 ●Compatible bolt: M12 ●Face size (mm): 8 ●Stroke (mm): 5 ●Top diameter (mm): 30 ●Load capacity (kN): 6 Material/Finish: ●Steel (S45C) ●Treatment: Hardened (35HRC), plated (clamp ring)
