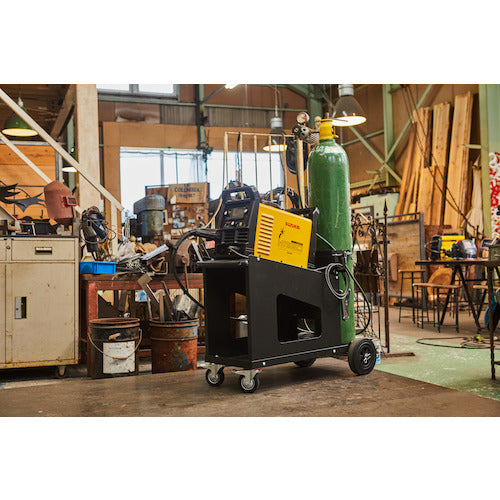

Catalog number: SIG-200 Features: ●100V/200V compatible inverter semi-automatic welding machine. ●Compatible with non-gas/gas (MIG/MAG), so it can weld iron (non-gas/gas), stainless steel (non-gas/gas), and aluminum (gas). ●Equipped with synergy function (automatically sets optimal welding conditions by selecting wire diameter and plate thickness). Even after automatic setting, output current/voltage can be adjusted according to the situation. ●Various adjustment functions can be easily set with the LCD digital panel, and can be saved and recalled. ●Compatible with Φ0.6 wire that can be used for thin plate welding. ●100V15A outlet allows welding from 0.6mm to 3.0mm. ● ● ● Applications: ●For welding mild steel, stainless steel, aluminum, and high tensile steel plates. Specifications: ● Wire diameter (mm): 0.6-1.2 ● Input voltage (V): Single phase 100/200 ● Rated input (kVA): 1.9/5.9 ● Output current (A): 80/200 ● Usage rate (%): 40/25 ● Input current (A): 29.5 ● Current range (A): 30-80/30-200 ● Width (mm): 255 ● Depth (mm): 520 ● Height (mm): 375 ● Power cord length (m): 7.0 ● Weldable materials: Mild steel, stainless steel, aluminum, high tensile steel plate ● Weldable plate thickness (mm): ● Iron: 0.6-2.5/0.6-7.0 ● Stainless steel: 0.6-2.5/0.6-4.0●Aluminum: 1.0-2.0/1.0-6.0●Secondary cable length (m): 3.0●Earth cable length (m): 3.0●Holder cable (m): 2.0●Inverter semi-automatic welding machine●Compatible with 100V/200V●Compatible with non-gas/gas (MIG/MAG)●Compatible with manual stick welding (cord with holder included)●Compatible with TIG welding (torch sold separately)●Weldable materials: mild steel, stainless steel, aluminum, high-tensile steel plate●Includes function to prevent over-utilization●Equipped with PFC (power factor correction) function Set contents/accessories: ●Semi-automatic torch (3.0m) x 1 ●Holder cord (.02m) x 1 ●Earth clip cord (3.0m) x 1 ●Argon flow meter x 1 ●Gas hose (3.0m) x 1 ●One-touch gas valve x 1 ●Hose band x 2 ●Tip replacement hardware x 1, Swan neck replacement hex wrench x 1 ●Consumables already installed on the main unit: SIG nozzle (P-627) x 1, mild steel/stainless steel tip φ0.8 (P-623) x 1 ●Instruction manual x 1, warranty card x 1
