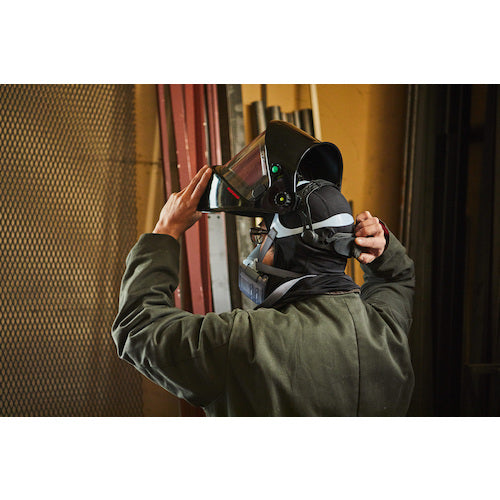

Catalog number: EB-300PWD Features: ●Digital panel allows easy operation with all settings displayed digitally. ●Auto mode allows the sensor to detect welding light and automatically set the appropriate light blocking level, sensitivity, and return speed for that light. ●Japan's first panoramic wide panel provides a wide 180° field of view and automatic shading on three sides simultaneously. ●High-performance liquid crystal blue filter that has been certified to the highest EU standard provides a clearer field of view. ●New one-touch headgear reduces wearing stress and improves work efficiency. Applications: ●For TIG/MIG/MAG/stick welding/cutting and polishing. Specifications: ● Facepiece dimensions (mm) Depth x Height x Width: 270 x 340 x 250 ● Before shading: #3 ● After shading: (center) #4 to #14 (both sides) #10 ● Shading speed (sec): 1/25000 ● Field of view (mm): (center) 115mm x 85mm (both sides) 68mm x 35 to 80mm ● Power supply (V): Solar battery + 2 lithium batteries CR2450 (test batteries included) ● Return speed (ms): 0.06 to 1.0 ● Return speed adjustment: 0 to 9 10 levels of adjustment (0.06 to 1.2 seconds) ● Sensitivity adjustment: 0 to 7 8 levels of adjustment ● Type: Black ● Shading level: Center: Welding mode: #8 to #14, Cutting mode: #4 to #8 Side: #10●Digital operation panel●Auto mode (light blocking level, return speed, sensitivity)●Afterglow recovery mode●Grind mode●Number of sensors: 5●Field of view: 115mm x 85mm (center), 68mm x 35-80mm (both sides)●Return speed: 10-step adjustment (0.06 seconds to 1.2 seconds)●Sensitivity adjustment: 8-step adjustment (0-7)●Power supply: Solar battery + lithium battery CR2032 x 2 (included) Set contents/accessories:●Instruction manual●Warranty card●2 outer cover plates●1 set of inner cover plates●Lithium battery (CR2032 x 2)
