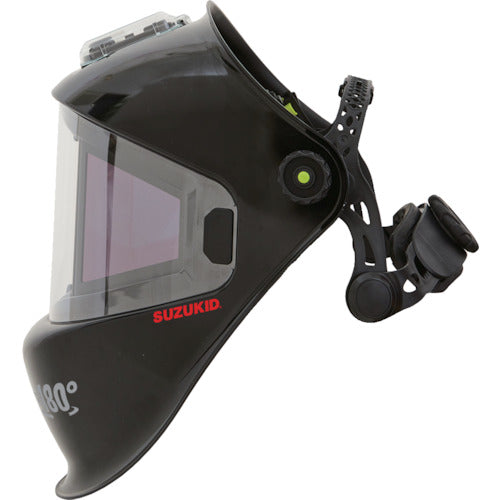

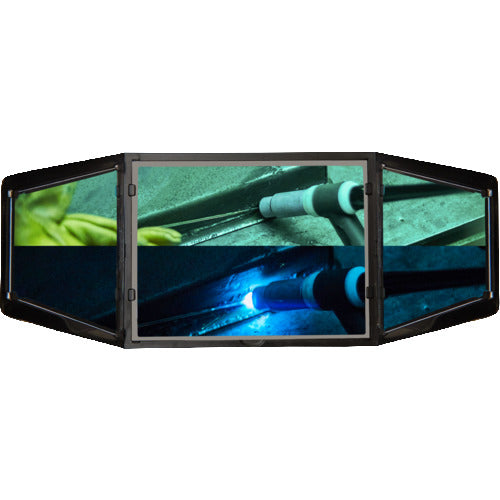

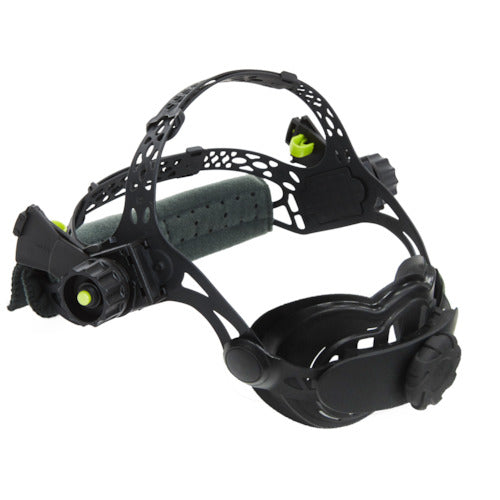

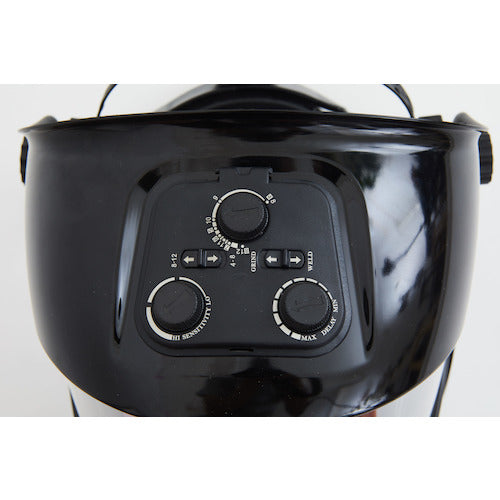

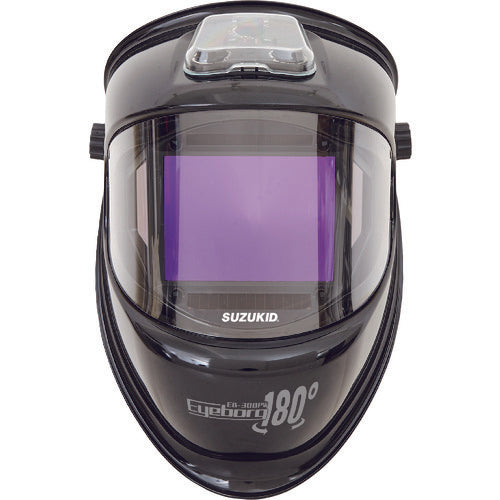

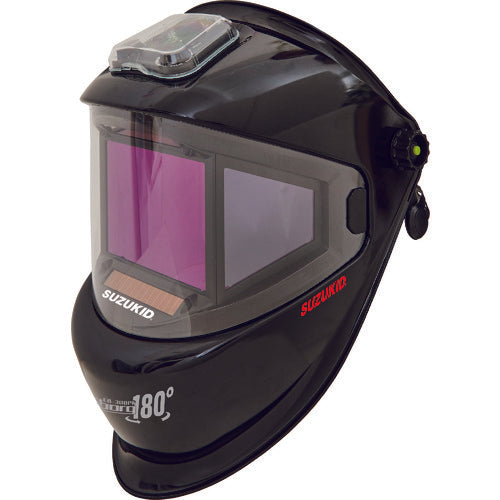

Catalog number: EB-300PW Features: *The panoramic wide panel provides a wide 180° field of view and automatic 3-sided simultaneous shading. *The high-performance liquid crystal blue filter that has been given the highest EU standard rating provides a clearer field of view. *The new one-touch headgear reduces wearing stress and improves work efficiency. Applications: *TIG/MIG/MAG/stick welding/cutting and polishing. Specifications: ● Facepiece dimensions (mm) Depth x Height x Width: 270 x 340 x 250 ● Before shading: #3 ● After shading: (center) #4 to #14 (both sides) #10 ● Shading speed (sec): 1/25000 ● Field of view (mm): (center) 115mm x 85mm (both sides) 68mm x 35 to 80mm ● Power supply (V): Solar battery + lithium battery CR2450 x 2 (included) ● Return speed (ms): 0.1 to 1.0 ● Return speed adjustment: 0.1 seconds to 1 .0 seconds (stepless adjustment) ● Sensitivity adjustment: Stepless adjustment ● Type: Body color: Black ● Shading level: Center: #4 to #8, #8 to #12 (switch) Side: #10 ● Body color: Black ● Field of view: 115mm x 85mm (center), 68mm x 35 to 80mm (both sides) ● Return speed: Stepless adjustment (0.1 seconds to 1.0 seconds) ● Sensitivity adjustment: Stepless adjustment ● Power supply: Solar battery + lithium battery CR2450 x 2 (included) ● Number of sensors 4 Set contents / accessories: ● Instruction manual ● Warranty card ● 2 outer cover plates ● 1 set of inner cover plates ● Test battery (CR2450 x 2)
