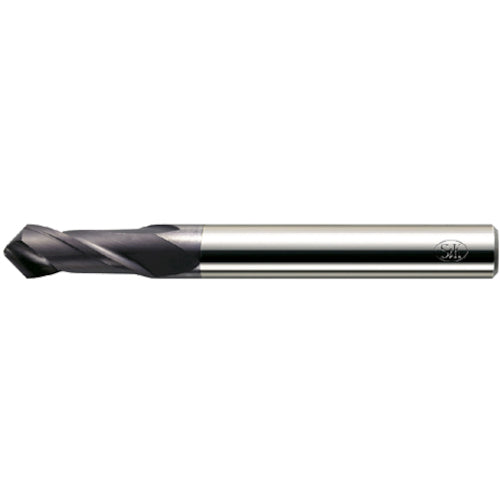

S&K SA Coated Carbide Center for Chamfering SAGCCC10X90 1 piece

Catalog number: SAGCCC10X90 Features: ●By combining the design concepts of end mills and drills, it can be used for a wide range of applications. ●Double angle is used for the chamfering part. ●It can be machined to a clean finished surface with few burrs. Applications: ●Cutting materials: carbon steel, alloy steel, tool steel, pre-hardened steel, stainless steel, cast iron, tempered steel (40HRC.50HRC). Specifications: ●Tip diameter (mm): 2 ●Large end diameter (mm): 1 ●Blade diameter (mm): 10 ●Total length (mm): 90 ●Shank diameter (mm): 10 ●Center hole angle (°): 90 ●Taper diameter (mm): 10 ●Surface treatment: SA coating ●Blade length (mm): 25 ●Tip angle (°): 90
