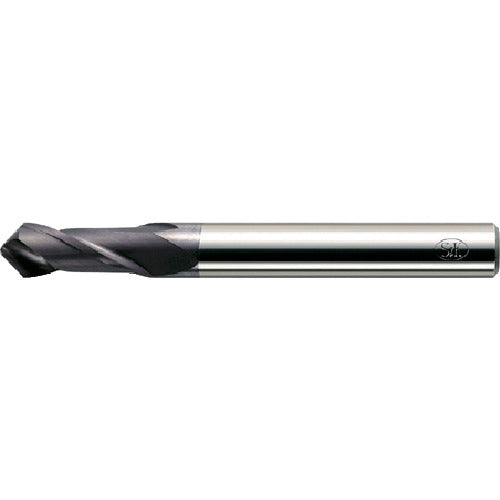

S&K SA Coated Carbide Center for Chamfering SAGCCC3X60 1 piece

Catalog number: SAGCCC3X60 Features: ●By combining the design concepts of end mills and drills, it can be used for a wide range of applications. ●Double angle is used for the chamfering part. ●It can be machined to a clean finished surface with few burrs. Applications: ●Cutting materials: carbon steel, alloy steel, tool steel, pre-hardened steel, stainless steel, cast iron, tempered steel (40HRC.50HRC). Specifications: ●Tip diameter (mm): 0.6 ●Large end diameter (mm): 3 ●Blade diameter (mm): 3 ●Total length (mm): 50 ●Shank diameter (mm): 6 ●Center hole angle (°): 60 ●Drill diameter (mm): 3 ●Drill length (mm): 6 ●Taper diameter (mm): 3 ●Surface treatment: SA coating ●Blade length (mm): 6 ●Tip angle (°): 60 ●Surface treatment: SA coating Material/Finish: ●Ultra-fine grain carbide
