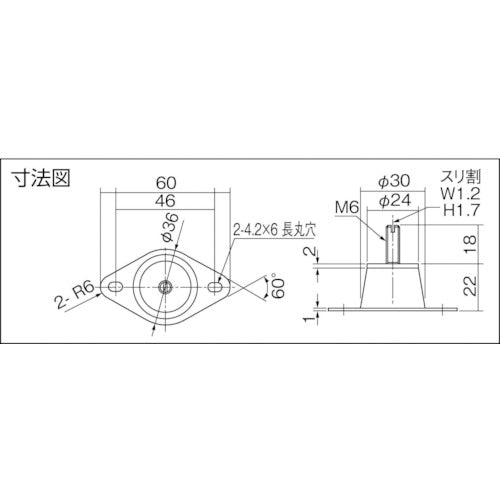

Catalog number: SF-10 Features: ● Designed with a low natural frequency, it can absorb vibrations in the low frequency range. ● Type with plate on the bottom and bolts on the top. ● Absorbs vibrations of equipment weighing 5 to 50 kg with four-point support. Applications: ● Vibration absorption of vacuum pumps and compressors. Specifications: ● Total height (mm): 40 ● Gel height (mm): 19 ● Screw dimensions: M6 ● External dimensions (mm): 24, 30 ● Recommended frequency (Hz): 17- ● Suitable load (kg): 7.50-12.50 ● Tensile strength (MPa): 0.03 ● Elongation (%): 340 ● Penetration (1/10 mm): 150 (JISK2207) Material/Finish: ● Rubber: Silicone gel ● Bolt: Iron (trivalent chromate plating) ● Plate: Stainless steel (SUS304)
