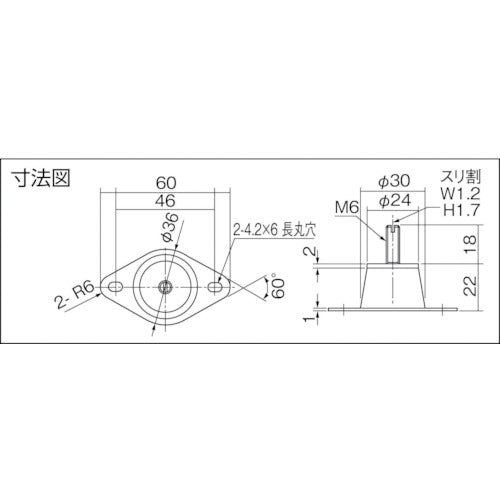

Catalog number: SF-5 Features: ● Designed with a low natural frequency, it can absorb vibrations in the low frequency range. ● A type with a plate on the bottom and bolts on the top molded as an integral part. ● Absorbs vibrations of equipment weighing 5 to 50 kg with four-point support. Applications: ● Vibration absorption of vacuum pumps and compressors. Specifications: ● Total height (mm): 40 ● Gel height (mm): 19 ● Screw dimensions: M6 ● External dimensions (mm): 24, 30 ● Recommended frequency (Hz): 19- ● Suitable load (kg): 3.25-7.50 ● Tensile strength (MPa): 0.03 ● Allowable load (kg): 2 ● Maximum load capacity (kg/piece): 2 ● Width (mm): 174 ● Elongation (%): 340 ● Number of holders (pieces): 8 ● Penetration (1/10mm): 150 (JISK2207) Material/Finish: ● Rubber: Silicone gel ● Bolt: Iron (trivalent chromate plating) ● Plate: Stainless steel (SUS304)
