TAIYOH Air Control Unit/2-piece set (with bracket and square pressure gauge) MKL3-10-BD 1 piece

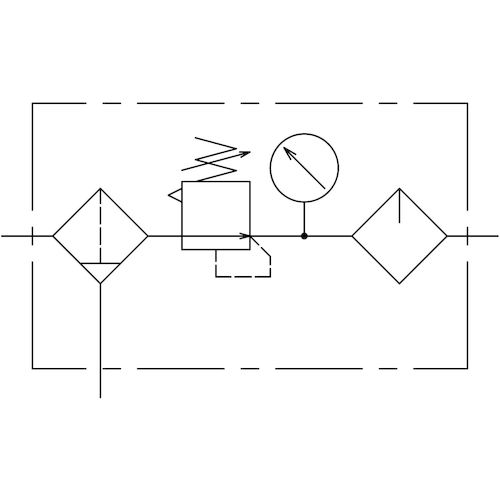

Catalog number: MKL3-10-BD Features: ● A compact combination of filter, regulator and lubricator that purifies the air, adjusts pressure, and supplies lubricant to pneumatic equipment. Specifications: ● Filtration accuracy (μm): 5 ● Operating pressure (MPa): 1 ● Connection diameter: Rc3/8 ● Oil storage capacity (cm3): 200 ● Overall length (mm): 251 ● Overall width (mm): 152 ● Set pressure (MPa): 0.1 to 0.85 ● Drain discharge method: Manual ● Fluid used: Air ● Fluid temperature (℃): 5 to 60 ● Pressure gauge: Square ● Drain storage capacity (cm3): 75 ● Minimum oil drip rate (L/min): 65 ● Operating temperature range: -5 to +60℃ (but do not freeze) ● Filter element (μm): 5 ● Drain storage capacity (cm3): 75 ● Minimum oil drip rate (L/min): 65 ● Recommended lubricant: Type 1 turbine oil (additive-free) ISOVG32 equivalent Set contents/accessories: ● Bracket ● Square pressure gauge Note: ●The manual drain automatically discharges drain when the pressure falls below 0.05 MPa.
