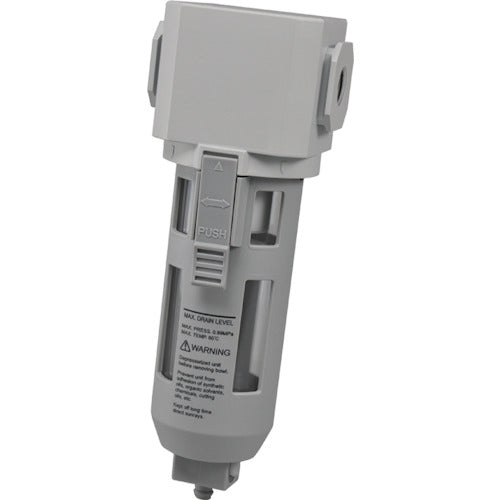

TAIYO Air Filter (with bracket) EAF3-10-B 1 piece

Catalog number: EAF3-10-B Features: ● Removes water droplets and debris from the air to supply clean air. Specifications: ● Filtration accuracy (μm): 5 ● Operating pressure (MPa): 1 ● Connection diameter: Rc3/8 ● Overall length (mm): 169 ● Overall width (mm): 68 ● Drain discharge method: Manual ● Fluid used: Air ● Fluid temperature (℃): 5 to 60 ● Drain storage volume (［［CM3］］): 35 ● Operating temperature range: -5 to +60℃ (but do not freeze) ● Filter element (μm): 5 ● Drain storage volume (［［CM3］］): 35 Set contents/accessories: ● Bracket Note: ● The manual drain automatically discharges drain when the pressure falls below 0.05MPa.
