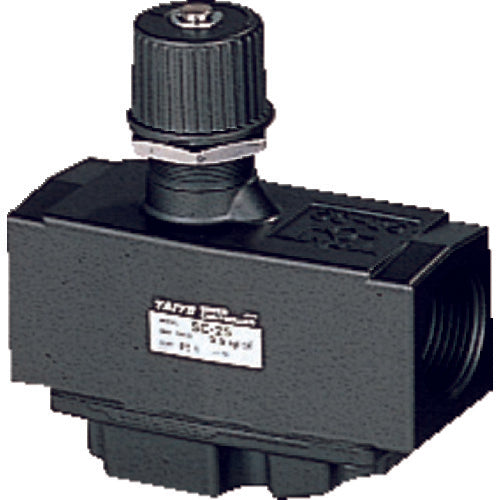

TAIYOH Speed ​​Controller 3/4 SC-20 1 piece

Catalogue number: SC-20 Features: ●Ideal for controlling the speed of actuators. ●Easy to fine-tune flow rate. ●Meter-in and meter-out vary depending on installation direction. Specifications: ●Connection diameter: Rc3/4 ●Connection diameter cylinder side: Rc3/4 ●Operating pressure (MPa): 0.05-1 ●Operating fluid: Air ●Fluid temperature (℃): +5-+60 ●Effective cross-sectional area (［［MM2］］): 159.5 ●Flow rate (L/min): 16000 ●Operating temperature range: 5-60℃ ●Operating pressure: 0.05-1MPa Material/Finish: ●Aluminum alloy
