大洋製器工業(株)

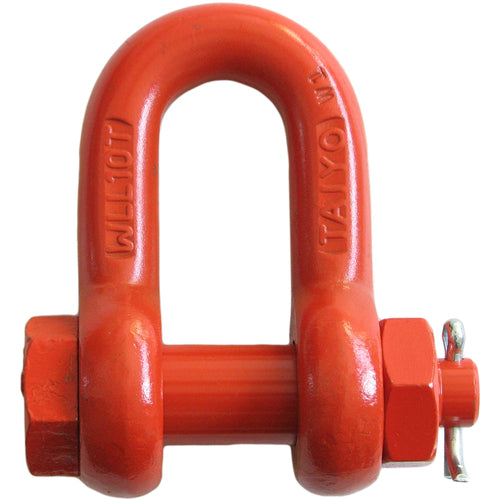

TAIYO Super Alloy Shackle TS-4t (1010235) TS-4T 1 piece
TAIYO Super Alloy Shackle TS-4t (1010235) TS-4T 1 piece
Regular price
¥3,641
Regular price
Sale price
¥3,641
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

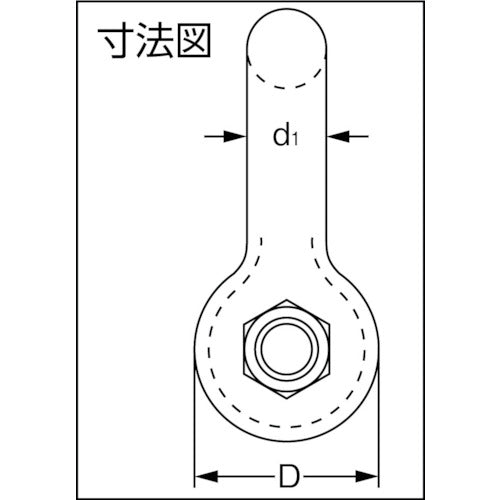

Catalogue number: TS-4T Features: ● High-quality shackle that maximizes strength and light weight. Applications: ● For loading and unloading work and as a multi-purpose connecting fixture. Specifications: ● Basic load capacity (t): 4 ● Type: Straight bolt-nut type ● Dimensions (mm) B: 26 ● Dimensions (mm) t: 16 ● Dimensions (mm) d3: 19 ● Dimensions (mm) D: 40 ● Dimensions (mm) L: 64 ● Dimensions (mm) d1: 16 ● Installation: Bolt-nut type ● Straight type Material/Finish: ● Special alloy steel Caution: ● Use below the load capacity.
View full details
