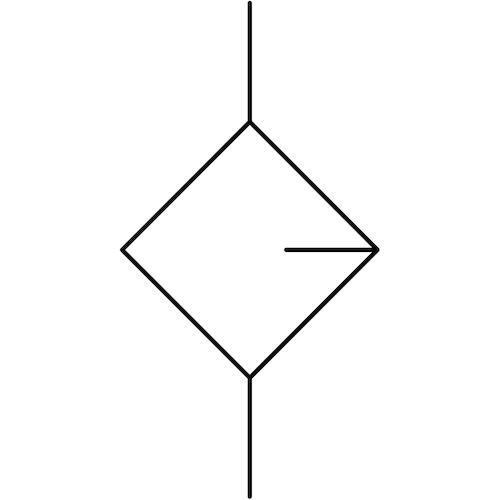

TAIYO Lubricator SAL3-06 1 piece

Catalogue number: SAL3-06 Features: ● Mixes an appropriate amount of lubricating oil into the air, smoothing the movement of pneumatic equipment and preventing friction. ● Set after the regulator. Specifications: ● Operating pressure (MPa): 1 ● Processed air flow rate (m3/min): 0.5 ● Oil storage capacity (cm3): 20 ● Connection diameter: Rc1/8 ● Overall length (mm): 123.0 ● Overall width (mm): 40 ● Minimum oil drip flow rate (L/min): 35 ● Operating temperature range: -5 to +60°C (but do not freeze) ● Recommended lubricating oil: Turbine oil type 1 (additive-free) ISOVG32 equivalent ● Fluid used: Air
