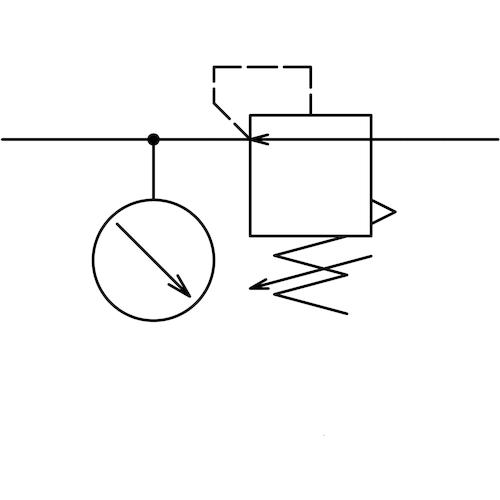

Catalog number: ERV3-08-BD Features: ●Adjusts air to a stable pressure. Specifications: ●Set pressure (MPa): 0.05 to 0.85 ●Operating pressure (MPa): 1 ●Connection diameter: Rc1/4 ●Total length (mm): 102.5 ●Total width (mm): 62 ●Operating fluid: Air ●Fluid temperature (℃): 5 to 60 ●Pressure gauge: Square type ●Operating temperature range: -5 to +60℃ (but do not freeze) Set contents/accessories: ●Bracket ●Square type pressure gauge
