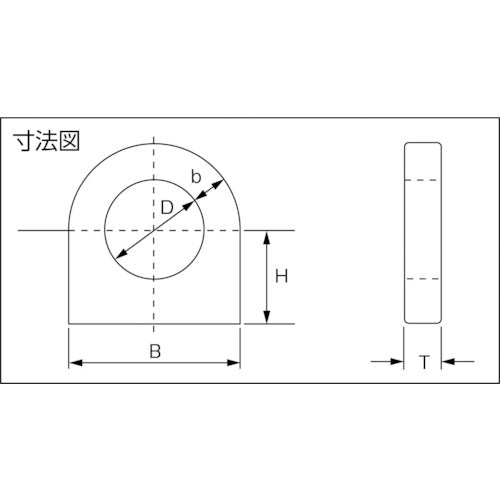

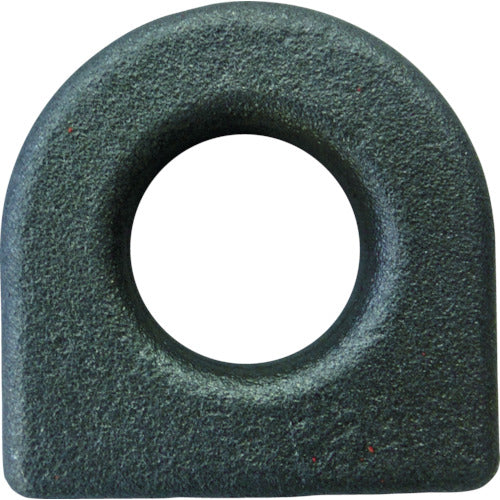

Catalog number: IP C-1 Features: ●JIS F3410-1999 C type. ●Welded installation type. ●Can be attached to a structure as a hanging piece and used as a hanging handle. Applications: ●For fixing structures such as rope ends, shackles, and pulleys, or as a hanging handle when hanging as a hanging piece. Specifications: ●Basic load capacity (t): 1 ●B (mm): 68 ●D (mm): 38 ●H (mm): 38 ●T (mm): 15 ●b (mm): 15 ●Load capacity: 1t ●b: 15 ●B: 68 ●D: 38 ●H: 38 ●T: 15 Material/Finish: ●Steel Caution: ●Make sure the welding is secure.
