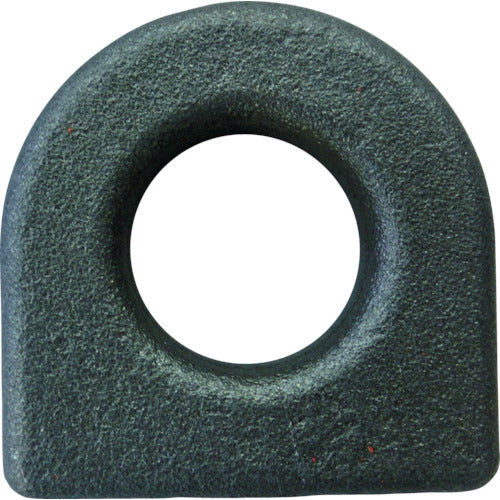

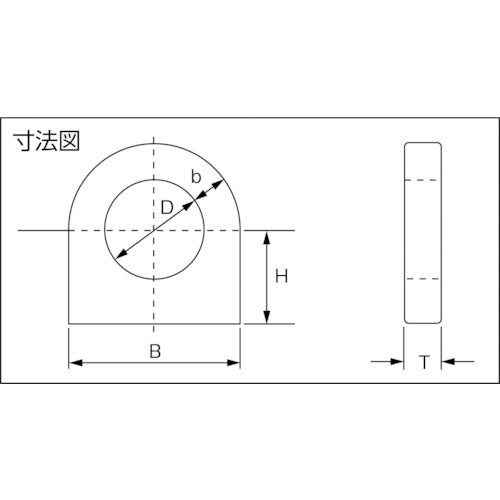

Catalog number: IP C-2 Features: ●JIS F3410-1999 C type. ●Welded installation type. ●Can be attached to a structure as a hanging piece and used as a hanging handle. Applications: ●For fixing structures such as rope ends, shackles, and pulleys, or as a hanging handle when hanging as a hanging piece. Specifications: ●Basic load capacity (t): 2 ●B (mm): 86 ●D (mm): 48 ●H (mm): 48 ●T (mm): 19 ●b (mm): 19 ●Load capacity: 2t ●b: 19 ●B: 86 ●D: 48 ●H: 48 ●T: 19 Material/Finish: ●Steel Caution: ●Make sure the welding is secure.
