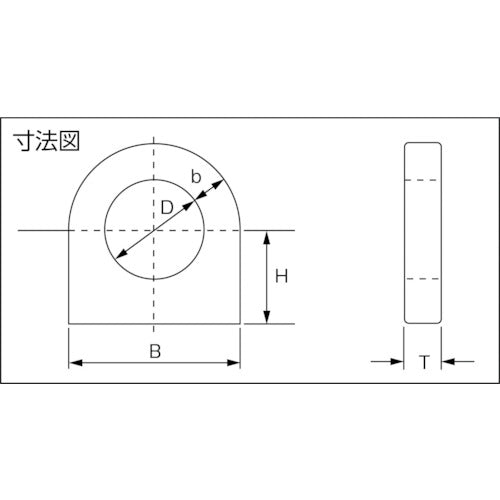

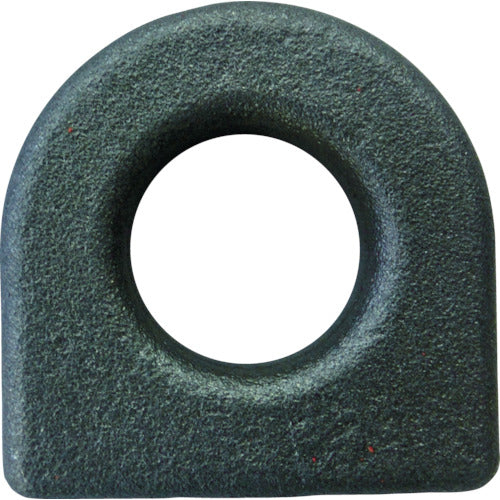

Catalog number: IP C-3 Features: ●JIS F3410-1999 C type. ●Welded installation type. ●Can be attached to a structure as a hanging piece and used as a hanging handle. Applications: ●For fixing structures such as rope ends, shackles, and pulleys, or as a hanging handle when hanging as a hanging piece. Specifications: ●Basic load capacity (t): 3 ●B (mm): 108 ●D (mm): 60 ●H (mm): 60 ●T (mm): 22 ●b (mm): 24 ●Load capacity: 3t ●b: 24 ●B: 108 ●D: 60 ●H: 60 ●T: 22 Material/Finish: ●Steel Caution: ●Make sure the welding is secure.
