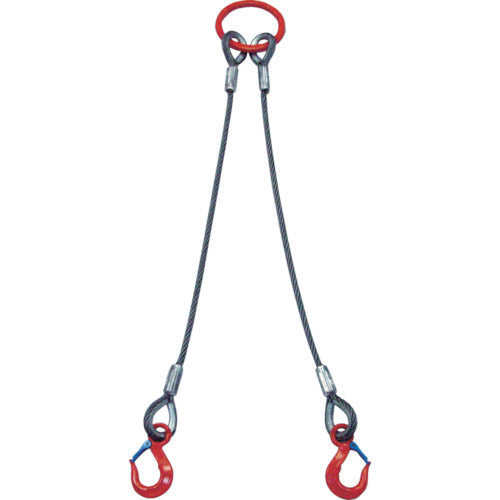

TAIYOH 2-piece wire sling for 1t x 1m (1011685) 2WRS 1TX1 1 S

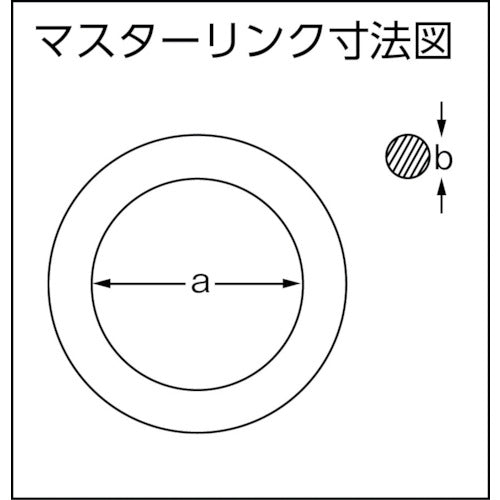

Catalog number: 2WRS 1TX1 Features: ●By using a V-hook, the wire can be prevented from coming off due to standing, improving safety. Applications: ●For slinging work at construction and civil engineering sites and various factories. Specifications: ● Sling diameter (mm): 9 ● Type: 2-point suspension ● Safe working load for 2-point suspension (t): 1 ● Reach (m): 1 ● Hyper ring dimension (mm) a: 100 ● Hyper ring dimension (mm) b: 15 ● V hook dimension (mm) c: 30 ● V hook dimension (mm) d: 40 ● V hook dimension (mm) e: 19 ● V hook dimension (mm) f: 8 ● V hook dimension (mm) g: 25 ● V hook dimension (mm) p: 108 ● Ring for 1.25t ● Hook for 0.63t ● Safety factor 5 times or more ● [Combination] Hyper ring + wire rope + V hook ● [Wire rope] 6 x 24 O/O, thimble with locking stopper Material/Finish: ● Rope: Steel ● Core: Hemp ● Sleeve: Aluminum Note: ● The working load is based on a suspension angle of 60°.
