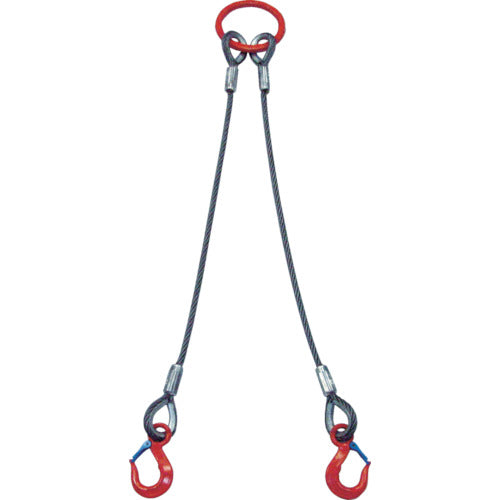

TAIYOH 2-piece wire sling for 3.2t x 2m (1011694) 2WRS 3.2TX2 1 S

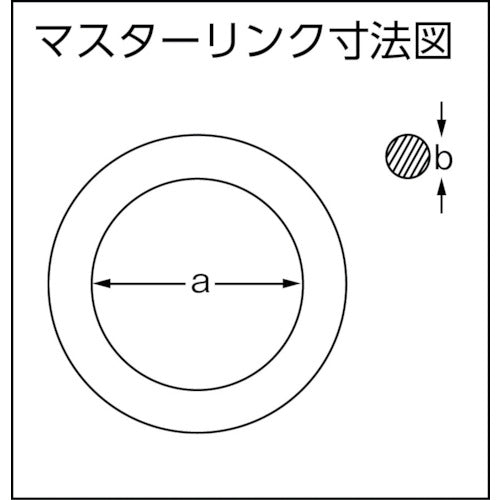

Catalog number: 2WRS 3.2TX2 Features: ●By using a V-hook, the wire can be prevented from coming off due to standing, improving safety. Applications: ●For slinging work at construction and civil engineering sites and various factories. Specifications: ● Sling diameter (mm): 16 ● Type: 2-point suspension ● Safe working load for 2-point suspension (t): 3.2 ● Reach (m): 2 ● Hyper ring dimension (mm) a: 160 ● Hyper ring dimension (mm) b: 24 ● V hook dimension (mm) c: 37 ● V hook dimension (mm) d: 50 ● V hook dimension (mm) e: 30 ● V hook dimension (mm) f: 13 ● V hook dimension (mm) g: 35 ● V hook dimension (mm) p: 143 ● Ring for 3.2t ● Hook for 2t ● Safety factor 5 times or more ● [Combination] Hyper ring + wire rope + V hook ● [Wire rope] 6 x 24 O/O, with thimble and locking stopper processing Note: ● The working load is based on a suspension angle of 60°.
