大洋製器工業(株)

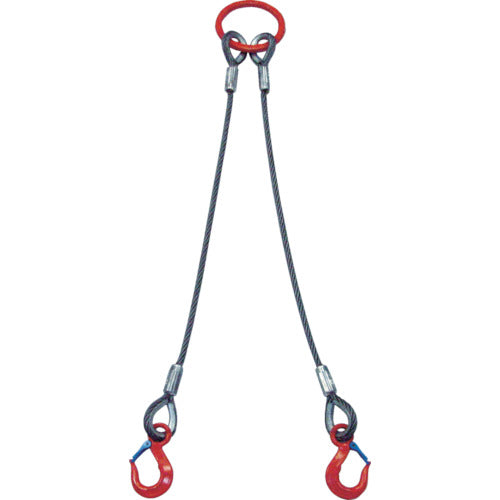

TAIYOH 2-piece wire sling for 5t x 2m (1011697) 2WRS 5TX2 1 S
TAIYOH 2-piece wire sling for 5t x 2m (1011697) 2WRS 5TX2 1 S
Regular price
¥77,141
Regular price
Sale price
¥77,141
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

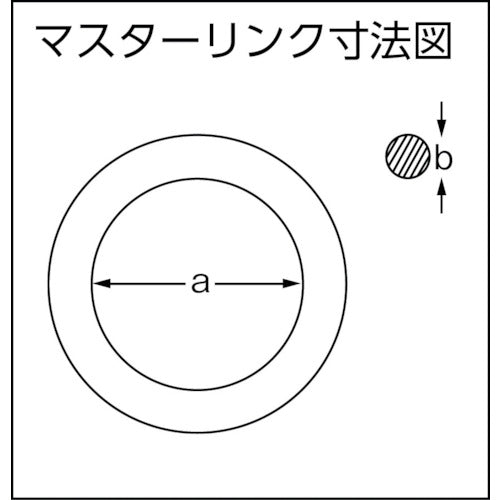

Catalog number: 2WRS 5TX2 Features: ●By using a V-hook, the wire can be prevented from coming off due to standing, improving safety. Applications: ●For slinging work at construction and civil engineering sites and various factories. Specifications: ● Sling diameter (mm): 20 ● Type: 2-point suspension ● Safe working load for 2-point suspension (t): 5 ● Reach (m): 2 ● Hyper ring dimension (mm) a: 200 ● Hyper ring dimension (mm) b: 30 ● V hook dimension (mm) c: 46 ● V hook dimension (mm) d: 60 ● V hook dimension (mm) e: 36 ● V hook dimension (mm) f: 16 ● V hook dimension (mm) g: 42 ● V hook dimension (mm) p: 171 ● Ring for 5t ● Hook for 3.2t ● Safety factor 5 times or more ● [Combination] Hyper ring + wire rope + V hook ● [Wire rope] 6 x 24 O/O, with thimble and locking stopper processing Note: ● The working load is based on a suspension angle of 60°.
