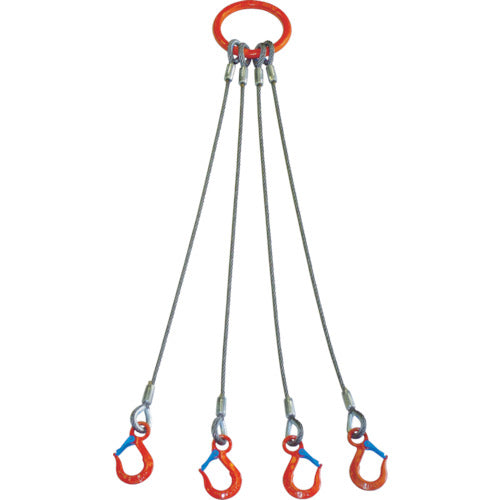

TAIYOH 4-piece wire sling for 1.6t x 1m (1011698) 4WRS 1.6TX1 1 S

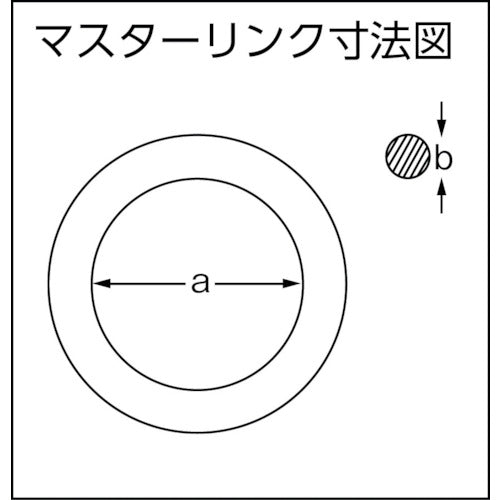

Catalog number: 4WRS 1.6TX1 Features: ●By using a V-hook, the wire can be prevented from coming off due to standing, improving safety. Applications: ●For slinging work at construction and civil engineering sites and various factories. Specifications: ● Sling diameter (mm): 9 ● Type: 4-point suspension ● Safe working load for 4-point suspension (t): 1.6 ● Reach (m): 1 ● Hyper ring dimension (mm) a: 140 ● Hyper ring dimension (mm) b: 20 ● V hook dimension (mm) c: 30 ● V hook dimension (mm) d: 40 ● V hook dimension (mm) e: 19 ● V hook dimension (mm) f: 8 ● V hook dimension (mm) g: 25 ● V hook dimension (mm) p: 108 ● Ring for 2t ● Hook for 0.63t ● Safety factor 5 times or more ● [Combination] Hyper ring + wire rope + V hook ● [Wire rope] 6 x 24 O/O, with thimble and locking stopper processing Note: ● The working load is based on a suspension angle of 60°.
