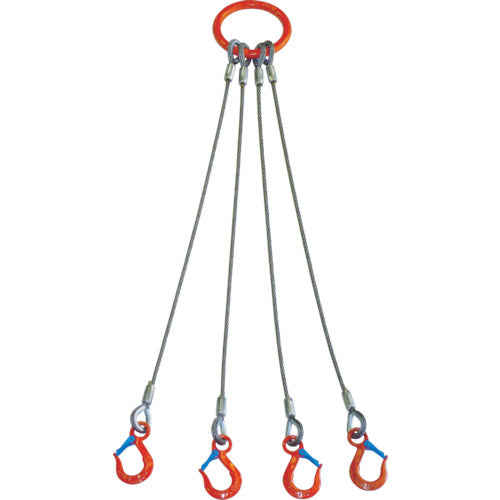

TAIYOH 4-piece wire sling for 5t x 1.5m (1011706) 4WRS 5TX1.5 1 S

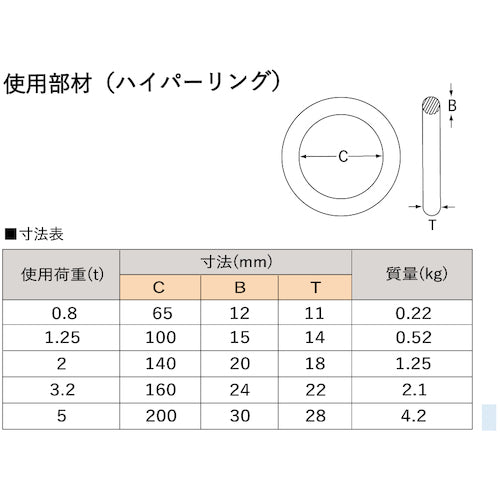

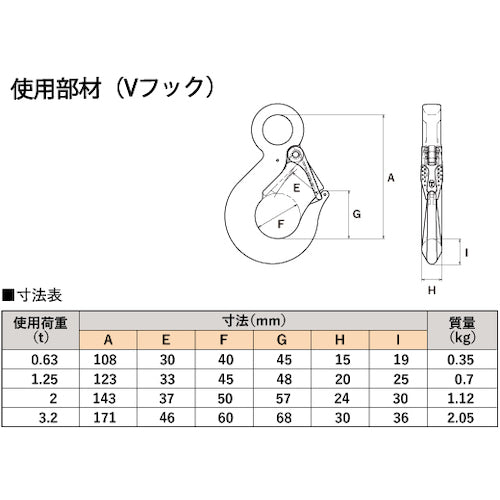

Catalog number: 4WRS 5TX1.5 Features: ●By using a V-hook, the wire can be prevented from coming off due to standing, improving safety. Applications: ●For slinging work at construction and civil engineering sites and various factories. Specifications: ● Sling diameter (mm): 16 ● Type: 4-point suspension ● Safe working load for 4-point suspension (t): 5 ● Reach (m): 1.5 ● Hyper ring dimension (mm) a: 200 ● Hyper ring dimension (mm) b: 30 ● V hook dimension (mm) c: 37 ● V hook dimension (mm) d: 50 ● V hook dimension (mm) e: 30 ● V hook dimension (mm) f: 13 ● V hook dimension (mm) g: 35 ● V hook dimension (mm) p: 143 ● Ring for 5t ● Hook for 2t ● Safety factor 5 times or more ● [Combination] Hyper ring + wire rope + V hook ● [Wire rope] 6 x 24 O/O, with thimble and locking stopper processing Note: ● The working load is based on a suspension angle of 60°.
