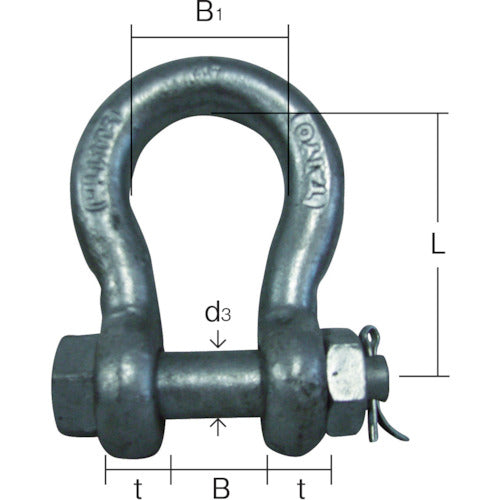

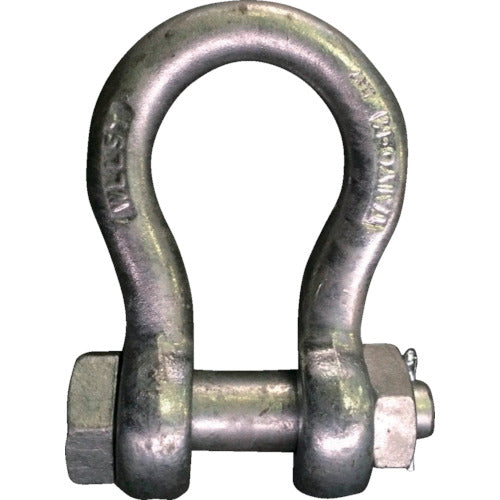

Catalogue number: JBB22G Features: ●JIS standard shackle. ●Available in a wide range of sizes for various uses. Applications: ●Used as a cargo handling and connecting fixture in civil engineering and construction work. Specifications: ●Basic load capacity (t): 3.15 ●Dimension (mm) B: 34 ●Dimension (mm) t: 22 ●Dimension (mm) d3: 26 ●Dimension (mm) D: 55 ●Dimension (mm) L: 117 ●Dimension (mm) B1: 65 ●Bolt and nut fastening type ●Bow type ●Hot-dip galvanized product ●JIS type Material/Finish: ●Steel ●Surface treatment: Hot-dip galvanized Caution: ●Use below the load capacity.
