TAIYOH JIS Shackle M Class Dob SB-34 (1007732) JSB-34G 1 pc

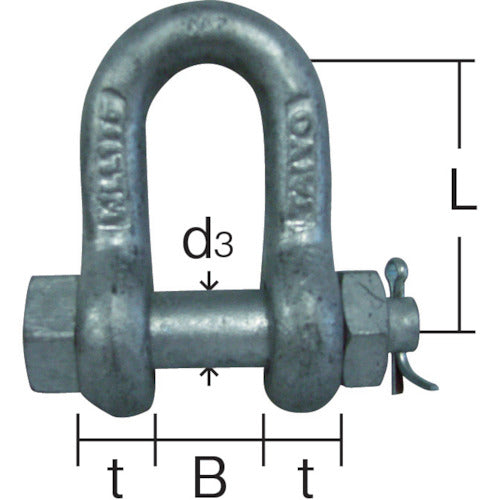

Catalogue number: JSB-34G Features: ●JIS standard shackle. ●Available in a wide range of sizes for various uses. Applications: ●Used as a cargo handling and connecting fixture in civil engineering and construction work. Specifications: ●Basic load capacity (t): 7.0 ●Dimensions (mm) B: 50 ●Dimensions (mm) t: 34 ●Dimensions (mm) d3: 40 ●Dimensions (mm) D: 85 ●Dimensions (mm) L: 136 ●Dimensions (mm) d1: 41 ●Bolt and nut fastening type ●Straight type ●Hot-dip galvanized product ●JIS type Material/Finish: ●Steel ●Surface treatment: Hot-dip galvanized Caution: ●Use below the load capacity.
