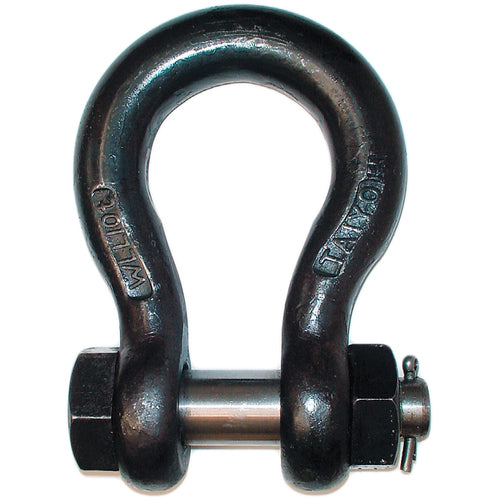

TAIYOH JIS Shackle M Class Black BB-24 (1010523) JBB24 1 pc

Catalogue number: JBB24 Features: ●JIS standard shackle. ●Available in a wide range of sizes for various uses. Applications: ●Used as a cargo handling and connecting fixture in civil engineering and construction work. Specifications: ●Basic load capacity (t): 3.6 ●Dimension (mm) B: 39 ●Dimension (mm) t: 24 ●Dimension (mm) d3: 30 ●Dimension (mm) D: 62 ●Dimension (mm) L: 126 ●Dimension (mm) d1: 31 ●Dimension (mm) B1: 70 ●Basic load capacity (t): 3.6 ●Bolt and nut fastening type ●Bow type ●Uncoated product ●JIS type Caution: ●Please use below the load capacity.
