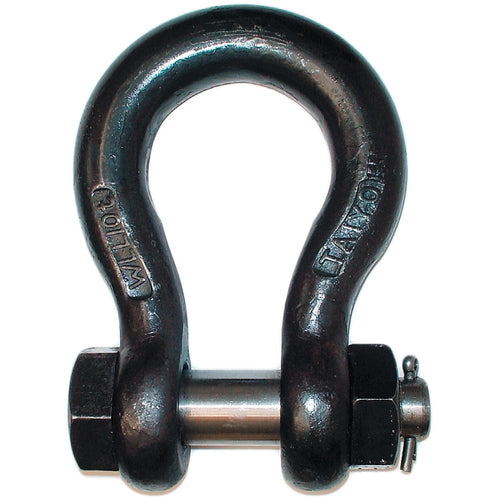

TAIYOH JIS Shackle M Class Black BB-28 (1010525) JBB28 1 pc

Catalogue number: JBB28 Features: ●JIS standard shackle. ●Available in a wide range of sizes for various uses. Applications: ●Used as a cargo handling and connecting fixture in civil engineering and construction work. Specifications: ●Basic load capacity (t): 4.8 ●Dimension (mm) B: 43 ●Dimension (mm) t: 28 ●Dimension (mm) d3: 34 ●Dimension (mm) D: 70 ●Dimension (mm) L: 144 ●Dimension (mm) d1: 35 ●Dimension (mm) B1: 80 ●Basic load capacity (t): 4.8 ●Bolt and nut fastening type ●Bow type ●Uncoated product ●JIS type Caution: ●Please use below the load capacity.
