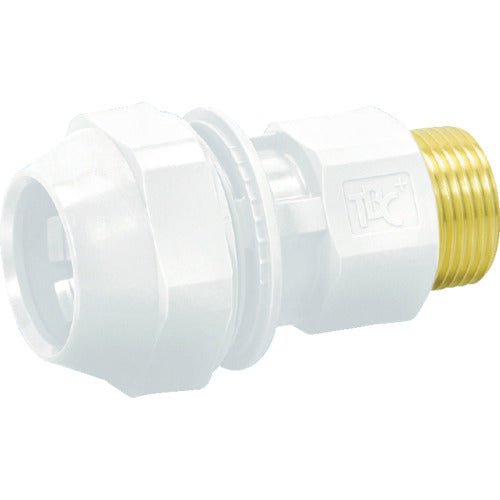

TBC Light Air Male Adapter White AIRWT20-M 1 piece

Catalog number: AIRWT20-M Features: *Lightweight pipe. *Easy to cut pipe, no need for threading, easy installation. *Pipe can be bent and maintains its shape. *Pipe with excellent corrosion resistance. Uses: ● Compressed air (for low pressure) Specifications: ● Connection diameter D: R3/4 ● Nominal diameter: 20 ● Connection diameter D1: R3/4 ● Compatible pipe nominal diameter (mm): 20 ● Total length (mm): 93.5 ● Fluid used: Compressed air (for low pressure) ● Hexagonal side W1 (mm): 49 ● Hexagonal side W2 (mm): 42 ● R: R3/4 ● φD (mm): 54 ● W1 (mm): 49 ● L (mm): 93.5 ● φd1 (mm): 18 ● W2 (mm): 42 ● Operating temperature: 0 to 60°C ● Maximum operating pressure: Less than 1.0MPa ● Operating environment temperature: 0°C to 60°C ● Operating environment: Indoor piping Materials/Finish: ● Body: Polyacetal (POM), brass (C3604BD) ● O-ring: Hydrogenated nitrile rubber (HNBR)
