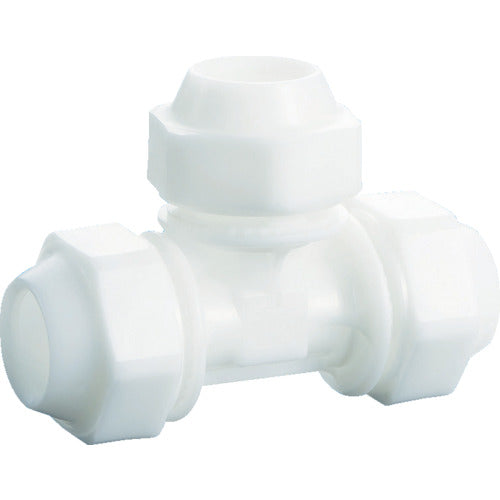

TBC Light Air Tee White AIRWT25-T 1 piece

Catalog number: AIRWT25-T Features: ●Lightweight pipe. ●Easy to cut pipe, no need for threading, easy installation. ●Pipe can be bent and maintains its shape. ●Excellent corrosion resistance. Applications: ●Compressed air (for low pressure) Specifications: ●Nominal diameter: 25 ●Compatible pipe nominal diameter (mm): 25 ●Compatible pipe nominal diameter D1 (mm): 25 ●Total length (mm): 133 ●Compatible pipe nominal diameter D2 (mm): 25 ●Type: Tee ●Operating temperature (℃): 0-60 ●Operating fluid: Compressed air (for low pressure) ●Operating pressure (MPa): 1 ●Hexagonal width W1 (mm): 56 ●Hexagonal width W2 (mm): 56 ●Operating temperature: 0-60℃ ●Maximum operating pressure: Less than 1.0MPa ●Operating environment temperature: 0℃-60℃ ●Operating environment: Indoor piping Material/Finish: ●Polyacetal (POM) ●O-ring: Hydrogenated nitrile rubber (HNBR)
