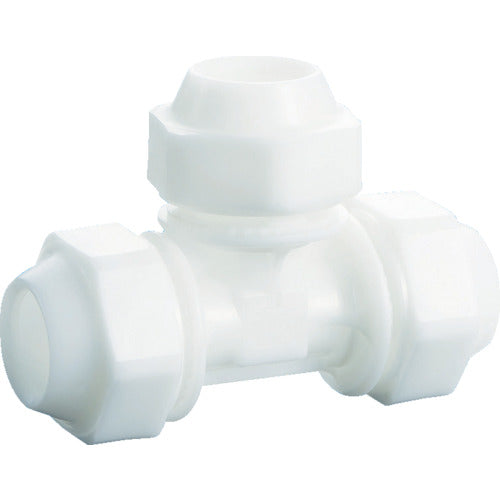

TBC Light Air Tee White AIRWT50-T 1 piece

Catalog number: AIRWT50-T Features: ●Lightweight pipe. ●Easy to cut pipe, no need for threading, easy installation. ●Pipe can be bent and maintains its shape. ●Pipe with excellent corrosion resistance. Uses: ● Compressed air (for low pressure) Specifications: ● Nominal diameter: 50 ● Suitable pipe nominal diameter (mm): 50 ● Suitable pipe nominal diameter D1 (mm): 50 ● Total length (mm): 183 ● Suitable pipe nominal diameter D2 (mm): 50 ● Type: Tee ● Operating temperature (℃): 0 to 60 ● Fluid used: Compressed air (for low pressure) ● Operating pressure (MPa): 1 ● Hexagonal side W1 (mm): 79 ● Hexagonal side W2 (mm): 79 ● φD (mm): 91 ● W1 (mm): 74 ● L2 (mm): 91.5 ● L1 (mm): 183 ● A (mm): 72.5 ● Operating temperature: 0 to 60℃ ● Maximum operating pressure: Less than 1.0MPa ● Operating environment: Indoor piping Material/Finish: ● Polyacetal (POM) ● O-ring: Hydrogenated nitrile rubber (HNBR)
