TBC Light Air Tee AIR20-T 1 piece

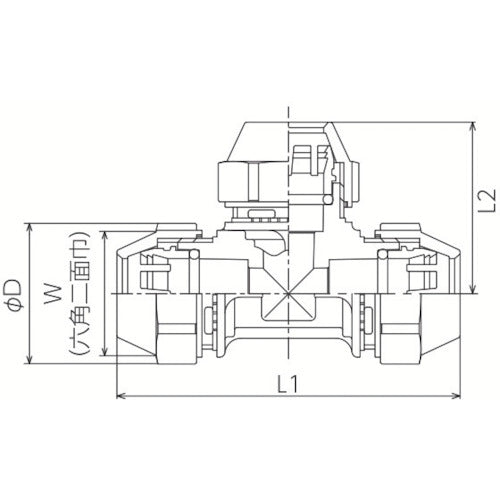

Catalog number: AIR20-T Features: ●Lightweight pipe. ●Easy to cut pipe, no need for threading, easy installation. ●Pipe can be bent and maintains its shape. ●Excellent corrosion resistance. Applications: ●Compressed air (for low pressure) Specifications: ●Nominal diameter: 20 ●Nominal diameter (mm): 20 ●Maximum operating pressure (MPa): Less than 1.0 ●Compatible pipe nominal diameter (mm): 20 ●Compatible pipe nominal diameter D1 (mm): 20 ●Compatible pipe nominal diameter D2 (mm): 20 ●Type: Tee ●Usable fluid: Compressed air (for low pressure) ●Hexagonal width W1 (mm): 49 ●Hexagonal width W2 (mm): 49 ●Usable fluid: Compressed air (for low pressure) ●Usable temperature: 0 to 60°C ●Maximum operating pressure: Less than 1.0MPa Material/Finish: ●Polyacetal (POM) ●O-ring: Hydrogenated nitrile rubber (HNBR)
