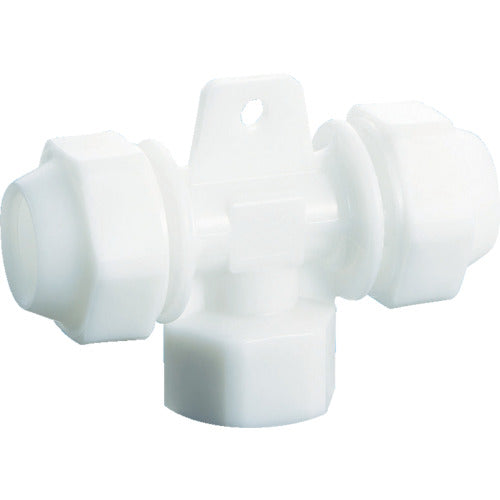

TBC Light Air Female Tee White AIRWT25-3/4FT 1 pc

Catalog number: AIRWT25-3/4FT Features: ●Lightweight pipe. ●Easy to cut pipe, no need for threading, easy installation. ●Pipe can be bent and keeps its shape. ●Pipe with excellent corrosion resistance. Uses: Compressed air (for low pressure) Specifications: Connection diameter D: Rc3/4 Nominal diameter: 25 Connection diameter D1: Rc3/4 Compatible pipe nominal diameter (mm): 25 Total length (mm): 133 Type: Tee Fluid used: Compressed air (for low pressure) Hexagonal side W1 (mm): 56 Hexagonal side W2 (mm): 47.5 R: Rc3/4 φD (mm): 61 W1 (mm): 56 L1 (mm): 133 L2 (mm): 49 W2 (mm): 47.5 Operating pressure Operating temperature: 0 to 60°C Maximum operating pressure: Less than 1.0MPa Operating environment temperature: 0°C to 60°C Operating environment: Indoor piping Materials/Finish: Body: Polyacetal (POM), brass (C3604BD) O-ring: Hydrogenated nitrile rubber (HNBR)
