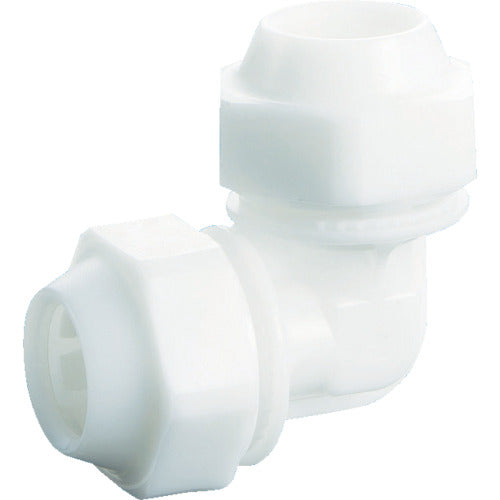

TBC Light Air Double Connection Elbow White AIRWT20-KE 1 pc

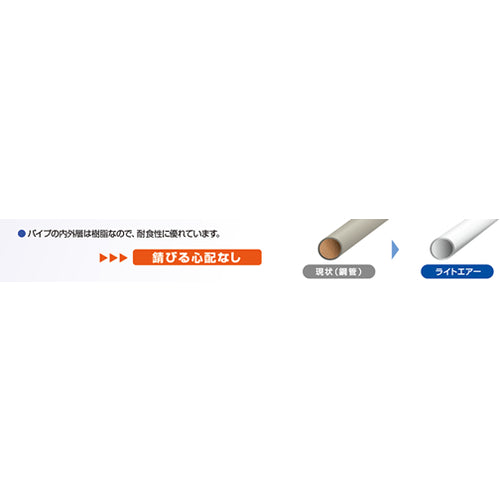

Catalog number: AIRWT20-KE Features: ●Lightweight pipe. ●Easy to cut pipe, no need for threading, easy installation. ●Pipe can be bent and maintains its shape. ●Excellent corrosion resistance. Applications: ●Compressed air (for low pressure) Specifications: ●Hexagonal face (mm): 49 ●Nominal diameter: 20 ●Compatible pipe nominal diameter (mm): 20 ●Total length (mm): 63.5 ●Type: Elbow ●Operating temperature (℃): 0-60 ●Operating fluid: Compressed air (for low pressure) ●Operating pressure (MPa): 1 ●W (mm): 49 ●φD (mm): 54 ●L (mm): 63.5 ●Operating pressure ●Operating temperature: 0-60℃ ●Maximum operating pressure: Less than 1.0MPa ●Operating environment temperature: 0℃-60℃ ●Operating environment: Indoor piping Material/Finish: ●Polyacetal (POM) ●O-ring: Hydrogenated nitrile rubber (HNBR)
