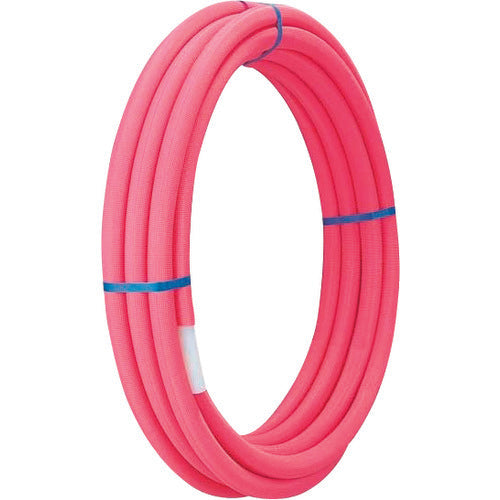

TBC Coated Bridge Pipe 13 Pink 10m 10mm Thickness HC-13HON10P-10M 1 pc

Catalog number: HC-13HON10P-10M Features: ● Cross-linked polyethylene pipe with thermal insulation. ● Maximum operating temperature is 95℃, so it can be used for water supply and hot water piping as well as reheating piping. Applications: ● Indoor piping for water supply and hot water. ● Reheating piping. Specifications: ● Nominal diameter: 13 ● Color: Pink ● Inner diameter (mm): 12.8 ● Outer diameter (mm): 38.0 ● Length (m): 10 ● Insulation thickness (mm): 10 ● Standard: JIS K 6769 ● Maximum operating pressure (MPa): 0.75 ● Operating temperature range (℃): 0-95 ● Insulation thickness: 10mm (for cold regions) ● Operating temperature range: 0-95℃ ● Maximum operating pressure: 0.75Mpa (at 95℃) ● JIS K6769 standard product Material/Finish: ● Inner pipe: Cross-linked polyethylene (PE) ● Outer layer: Polyethylene (PE)
