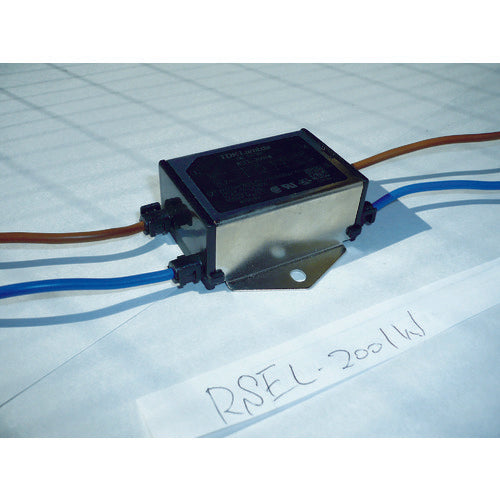

TDK Lambda Noise Filter RSEL Series Wire Type 250V 1A RSEL-2001W 1 piece

Catalog number: RSEL-2001W Features: ● Compact, small, general-purpose type. ● Low leakage current characteristics are available as an option. Applications: ● For noise countermeasures. Specifications: ● Rated voltage AC/DC (V): 250 ● Rated current AC/DC (A): 1 ● DC resistance (MΩ): 600 max ● Mounting type: Wire type (AWG20) ● Insulation resistance: 100 MΩ min (DC500V/1min) ● Withstand voltage (V): AC. 2500V 60s (line to earth) ● Leakage current: 1.0 mA max (250V/60Hz) ● Operating temperature range: -25 to 85°C ● Derating start temperature: 55°C
