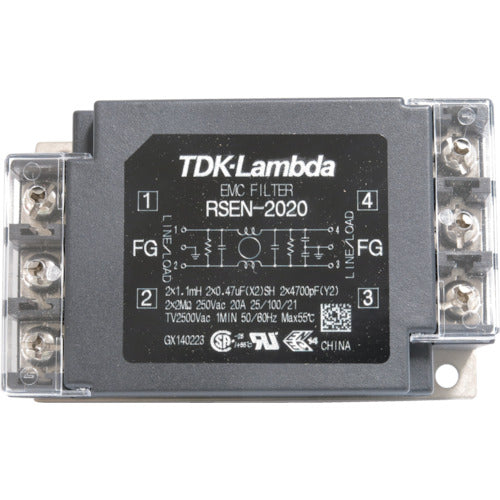

TDK Lambda Noise Filter RSEN Standard Type 250V 20A RSEN-2020 1 piece

Catalog number: RSEN-2020 Features: ● A general-purpose single-phase filter with a wide variety of options and an emphasis on functionality. ● Self-tightening screws and an openable cover improve wiring workability. ● Low leakage current characteristic type and DIN rail mounting type are available as options. Applications: ● For noise control. Specifications: ● Rated voltage AC/DC (V): 250 ● Rated current AC/DC (A): 20 ● DC resistance (MΩ): 10max ● Mounting type: Stationary ● Insulation resistance: 100MΩ min (DC500V/1min) ● Withstand voltage (V): AC. 2500V 60s (line to earth) ● Leakage current: 1.0mA max (250V/60Hz) ● Operating temperature range: -25 to 85°C ● Derating start temperature: 55°C
