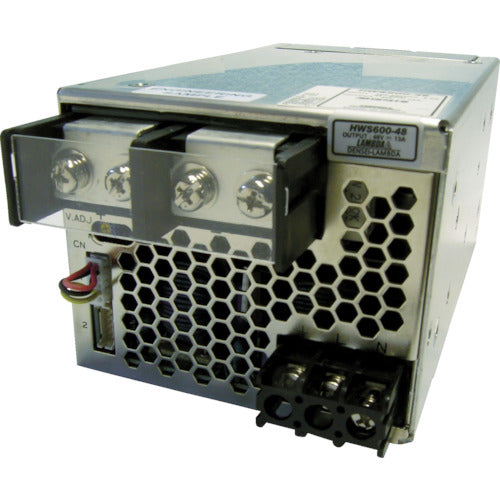

TDK Lambda Unit Type AC-DC Power Supply HWS Series 600W HWS600-12 1 unit

Catalog number: HWS600-12 Features: *Complies with RoHS directives, including lead-free. *Uniform height package (H: 82mm) that makes effective use of installation space. *Can be mounted on a 2U rack mount for FA measurement fields. *Includes safety terminals that cover live terminal screws and prevent screws from falling off. Applications: *Computers, communication equipment, measuring equipment, FA equipment. Specifications: ● Input voltage range (V): AC85-265, DC120-330 ● Maximum output (A): 53 ● Maximum output (W): 636 ● Width (mm): 100 ● Depth (mm): 165 ● Height (mm): 82 ● Rated output voltage (V): DC12 ● Withstand voltage (V): Input-output:, Input-FG: 2kVAC, Output-FG: 500VAC for 1 minute each ● Comes with cover ● Cooling method: Forced air cooling with built-in fan ● Operating ambient temperature: (standard installation) -10 to +70°C (Open frame type -10°C to +50°C: 100% +70°C: 20%)
