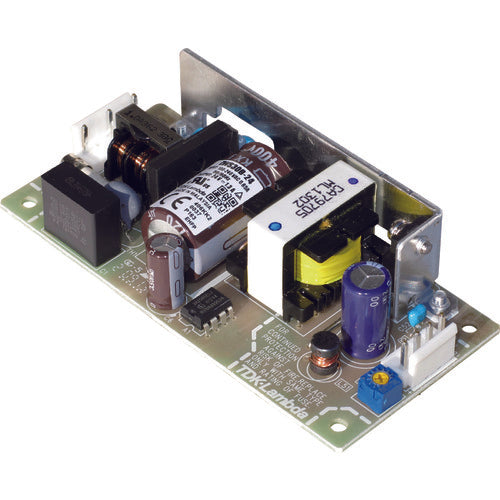

TDK-Lambda PCB-type AC-DC switching power supply ZWS-B series 30W ZWS30B-24 1 unit

Catalog number: ZWS30B-24 Features: ●Simple circuit configuration that omits harmonic current suppression circuit. ●Compact, lightweight, and highly efficient. Applications: ●For computers, communication equipment, measuring equipment, and factory automation equipment. Specifications: ●Input voltage range (V): AC85-265, DC120-370 ●Maximum output (A): 1.3 ●Maximum output (W): 31.2 ●Width (mm): 50 ●Depth (mm): 105 ●Height (mm): 26 ●Rated output voltage (V): DC24 ●Optional harness (sold separately): HA-2-IN for input, HA-3-OU for output ●PCB type
