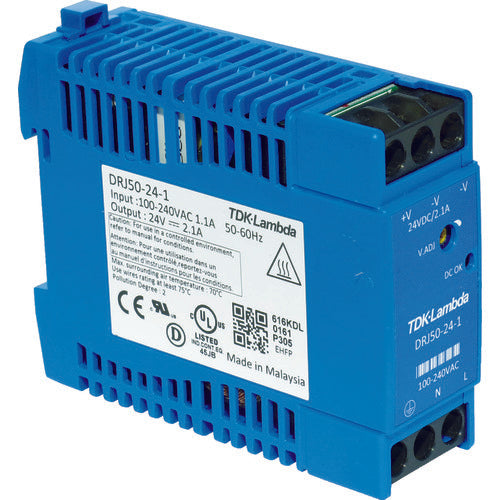

TDK-Lambda DIN rail mounting dedicated unit type power supply DRJ 50W block terminal DRJ50-24-1 1 unit

Catalog number: DRJ50-24-1 Features: *All models have a standardized height of 75mm, and are dedicated power supplies for DIN rail mounting. *The input and output terminals are block terminals (safety terminals). *Achieves compact size through high efficiency. (Maximum efficiency of 90% for DRJ100-24-1) *Complies with SEMI-F47 standards (at 200VAC input). *Achieves 45% smaller volume than the previous model (DLP100-24-1). *Can be used over a wide range of operating ambient temperatures, from -20 to +70°C (load rate of 100% from -10 to +55°C). Applications: *Industrial automation equipment. *Semiconductor manufacturing equipment. *Control equipment. Specifications: ● Input voltage range (V): AC85-264/DC120-370● Maximum output (A): 2.1● Maximum output (W): 50.4● Width (mm): 30● Depth (mm): 90● Height (mm): 75● Rated output voltage (V): DC24● Terminal shape: Block terminal (safety terminal)● Cooling method: Natural air cooling● Operating ambient temperature: -10 to 55°C 100%, -20°C 50%, 70°C 50%● Safety standards: UL60950-1, CSA60950-1, EN60950-1, UL508● EMI: Compliant with EN55011/55022-B, FCC-B, VCCI-B● Rated output voltage (VDC): 24
