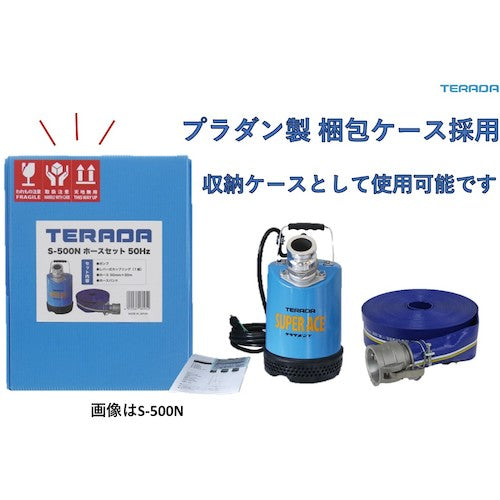

Catalogue number: S-500N HOSESET 50HZ Features: ● Speed drainage type for hoses with an inner diameter of 50 mm. ● Powerfully drains large amounts of water. ● Equipped with a lever-type coupling, so hoses can be connected without tools. ● Hose can be cut to the required length. ● Unparalleled abrasion resistance in the 220 to 500 W class. ● Compact, lightweight, and easy to handle. ● Casing and impeller are made of special rubber, with excellent abrasion and impact resistance. ● Automatic burnout prevention device built into the motor. Applications: ● For drainage during flooding, etc. ● For civil engineering. ● Drainage of water mixed with soil and sand. Specifications: ●Discharge volume (L/min): 120 ●Total head (m): 8.5 ●Frequency (Hz): 50 ●Caliber (mm): 50 ●Power supply (V): Single phase 100 ●Current (A): 6.7 ●Output (kW): 0.5 ●Total width (mm): 189 ●Total length (mm): 189 ●Total height (mm): 342 ●Maximum pump depth: 4m ●Liquid temperature (℃): 0-40 (no freezing) ●Minimum pumping level (mm): 60 ●Usable water quality: Clean water, sewage, muddy water ●Power cord length (m): 5 ●Non-automatic operation type ●Lever coupling ●Hose: 20m Material/Finish: ●Casing: Synthetic rubber ●Impeller: Synthetic rubber ●Main shaft: SUS420J2 Set contents/Accessories: ●Lever coupling (1 set) ●20m hose (1 piece) ●Plastic storage case (1 box) ●Hose band (1 piece)
