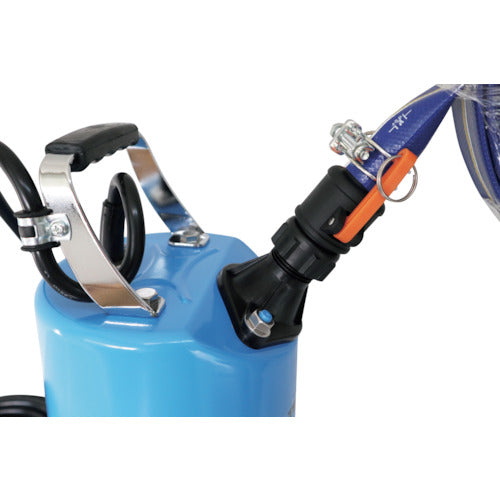

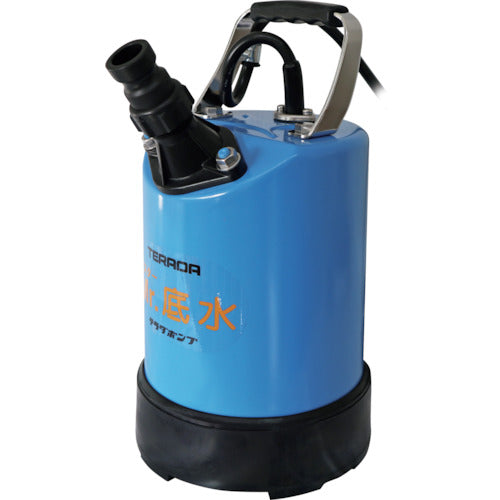

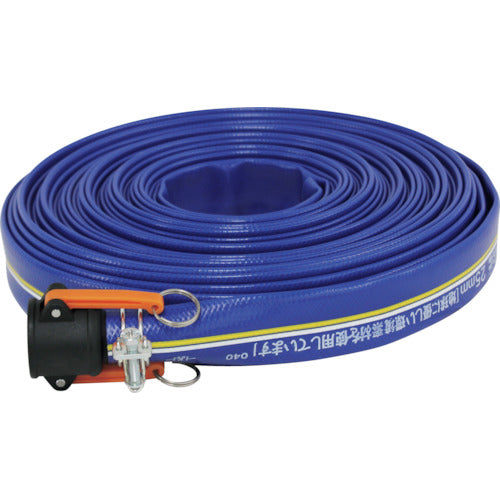

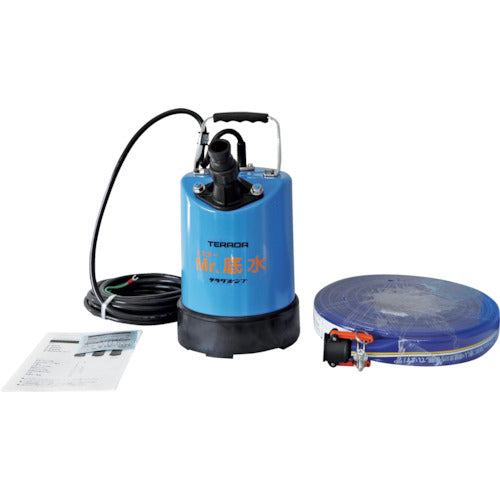

Catalog number: S-500LN HOSESET 50HZ Features: ● For bottom water, draining water below 1mm. ● Cannot be used in places with accumulated sediment. ● Lever-type coupling allows hose connection without tools. ● Hose can be cut to required length. ● Check valve is built-in. ● Unparalleled wear resistance in the 220-500W class. ● Lightweight and compact, easy to handle. ● Casing and impeller are made of special rubber, with excellent wear and impact resistance. ● Automatic burnout prevention device built into the motor. Applications: ● For draining water during flooding, etc. ● For draining residual water from elevated water tanks in buildings and condominiums. ● For collecting and draining water in underground passages. Specifications: ● Discharge volume (L/min): 110 (maximum) ● Total head (m): 11 (highest) ● Frequency (Hz): 50 ● Caliber (mm): 25 ● Power supply (V): Single phase 100 ● Current (A): 6.7 ● Output (kW): 0.5 ● Overall width (mm): 195 ● Overall length (mm): 195 ● Overall height (mm): 348 ● Maximum pump depth: 4m ● Liquid temperature (℃): 0-40 (no freezing) ● Minimum pumping level (mm): 40 ● Usable water quality: Clean water, sewage ● Power cord length (m): 5 ● Non-automatic operation type ● Lever type coupling ● Hose: 20m Material/Finish: ● Casing: Synthetic rubber ● Impeller: Synthetic rubber ● Main shaft: SUS420J2 Set contents/Accessories: ● Lever type coupling (1 set) ● 20m hose (1 piece) ● Plastic storage case (1 box) ● Hose band (3 pieces) Note: ●Discharge volume and total head are maximum values.
