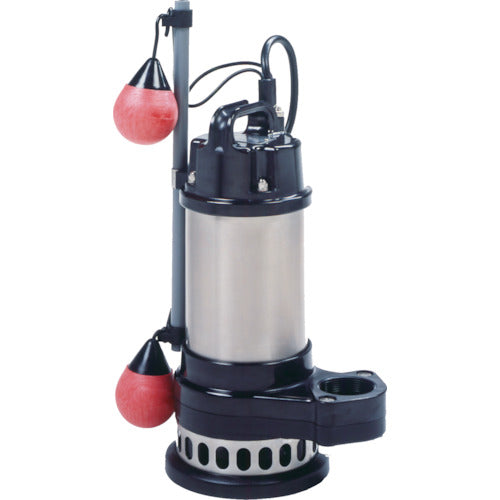

TERADA Underwater Super Techpon Automatic 60Hz CXA-250T 60Hz 1 unit

Catalogue number: CXA-250T 60HZ Features: ● This pump is resistant to rust and has significantly improved durability with its liquid contact parts made of stainless steel (SUS316) and resin. ● The vortex structure eliminates clogging. ● Equipped with a built-in motor protection device. ● A small, lightweight type that is convenient to carry and install. ● The use of new materials makes it strong and less prone to wear. ● The non-clog impeller reduces clogging. ● The shaft seal uses a combination of a double mechanical seal and an oil seal, both of which have excellent abrasion resistance. ● The built-in motor protection device with an automatic reset function prevents motor damage. Applications: ● For wastewater drainage treatment. ● For industrial equipment. ● For building equipment. Specifications: ● Discharge volume (L/min): 120 ● Total head (m): 4.0 ● Frequency (Hz): 60 ● Caliber (mm): 50 ● Power supply (V): Three-phase 200 ● Current (A): 1.4 ● Output (kW): 0.25 ● Overall width (mm): 253 ● Overall length (mm): 180 ● Overall height (mm): 399 ● Foreign object passage diameter (mm): 15 ● Liquid temperature (℃): 0-40 ● Usable water quality: Clean water, sewage, water containing filth ● Power cord length (m): 5 ● Body height (mm): 399 ● Overall width (mm): 253 ● Body dimensions (mm) height: 399 ● Output (W): 0.25 ● Foreign object passage diameter: 15mm or less ● Automatic operation type ● Foreign object passage length (mm): Maximum 100 Material/Finish: ●Casing: Synthetic resin (reinforced with glass fiber) ●Impeller: Synthetic resin (reinforced with glass fiber) ●Shaft: SUS316 Set contents/Accessories: ●Cabtyre cable (5m) ●Companion flange ●Float support rod Note: ●Please be sure to specify the frequency when ordering.
