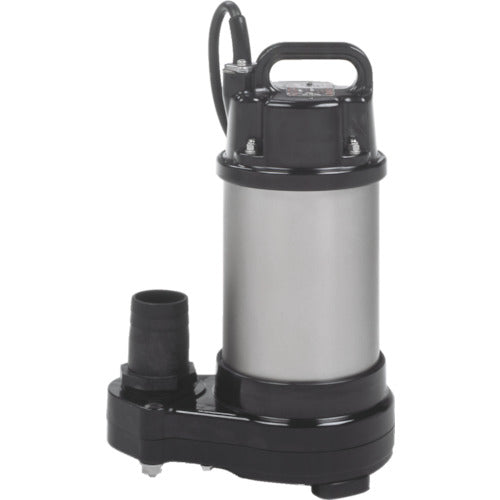

TERADA Underwater Super Techpon for Bottom Water CX-250TL 60HZ 1 unit

Catalog number: CX-250TL 60HZ Features: ● The shaft seal uses a highly wear-resistant double mechanical seal and oil seal. ● It can drain water up to a water level of 5 to 6 mm. ● The liquid contact parts are made of resin and stainless steel (SUS316), so it is a rust-resistant, light, corrosion-resistant pump. ● Equipped with a motor protection device. ● Compact and lightweight type that is easy to carry. Applications: ● For draining residual water from elevated water tanks in buildings and condominiums. ● For draining residual water from pools, water tanks, and various pits. ● For draining accumulated water from underground passages and spring water from construction work. Specifications: ●Discharge volume (L/min): 140 (maximum) ●Total head (m): 7.5 (highest) ●Frequency (Hz): 60 ●Diameter (mm): 50 ●Power supply (V): Three-phase 200 ●Current (A): 1.4 ●Output (kW): 0.25 ●Total width (mm): 243 ●Total length (mm): 174 ●Total height (mm): 355 ●Foreign object passage diameter (mm): 1 ●Power cord length (m): 5 ●Body height (mm): 355 ●Total body width (mm): 243 ●Body dimensions height (mm): 355 ●Non-automatic operation type Material/Finish: ●Casing (synthetic resin) ●Impeller (synthetic resin) ●Main shaft (SUS316) Set contents/Accessories: ●Cabtyre cable (5m) ●Bamboo shoots (50mm) ●Hose band Note: ●Please be sure to specify the frequency when ordering.
