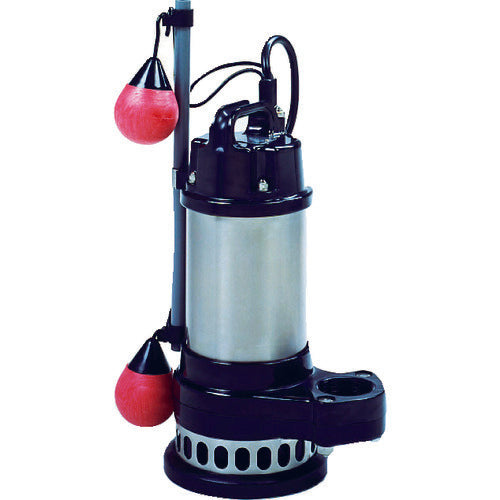

TERADA Underwater Super Techpon Automatic 50Hz CXA-400 1 unit

Catalogue number: CXA-400 Features: * A pump with rust-resistant and significantly improved durability thanks to its stainless steel (SUS316) and resin wetted parts. * Vortex structure eliminates clogging. * Equipped with a built-in motor protection device. * Compact and lightweight type that is easy to carry and install. * Uses new materials for less wear and greater strength. Applications: * For sewage drainage treatment. * For industrial equipment. * For construction and civil engineering. Specifications: ●Discharge volume (L/min): 150 ●Total head (m): 6.0 ●Frequency (Hz): 50 ●Caliber (mm): 50 ●Power supply (V): Single phase 100 ●Current (A): 8.0 ●Output (kW): 0.4 ●Total width (mm): 253 ●Total length (mm): 180 ●Total height (mm): 416 ●Foreign object passage diameter (mm): 15 ●Liquid temperature (℃): 0-40 ●Usable water quality: Clean water, sewage, water containing filth ●Power cord length (m): 5 ●Body height (mm): 416 ●Total width (mm): 253 ●Body dimensions (mm) Height: 416 ●Power cord length: 5m ●Foreign object passage diameter: 15mm or less ●Automatic operation type Material/Finish: ●Casing: Synthetic resin (glass fiber reinforced) ●Impeller: Synthetic resin (glass fiber reinforced) ●Main shaft: SUS316 Set contents/accessories: ●Float support rod (1 piece) Note: ●Please be sure to specify the frequency when ordering.
