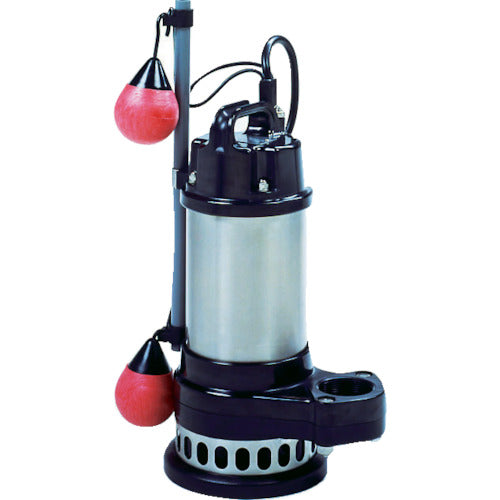

TERADA Underwater Super Techpon Automatic 60Hz CXA-400 1 unit

Catalogue number: CXA-400 Features: * A pump with stainless steel (SUS316) and resin liquid contact parts that is resistant to rust and has significantly increased durability. * Vortex structure eliminates clogging. * Equipped with a built-in motor protection device. * Compact and lightweight type that is easy to carry and install. * Uses new materials for less wear and greater strength. Applications: * For sewage drainage treatment. * For industrial equipment. * For construction and civil engineering. Specifications: ● Discharge volume (L/min): 150 ● Total head (m): 5.5 ● Frequency (Hz): 60 ● Caliber (mm): 50 ● Power supply (V): Single phase 100 ● Current (A): 7.6 ● Output (kW): 0.4 ● Overall width (mm): 253 ● Overall length (mm): 180 ● Overall height (mm): 416 ● Foreign object passage diameter (mm): 15 ● Liquid temperature (℃): 0-40 ● Usable water quality: Clean water, sewage, water containing filth ● Power cord length (m): 5 ● Body height (mm): 416 ● Overall width (mm): 253 ● Body dimensions (mm) Height: 416 ● Foreign object passage diameter: 15mm or less ● Automatic operation type Material/Finish: ● Casing: Synthetic resin (glass fiber reinforced) ● Impeller: Synthetic resin (glass fiber reinforced) ● Main shaft: SUS316 Set contents/Accessories: ● Float support rod (1 piece) Note: Please be sure to specify the frequency when ordering.
