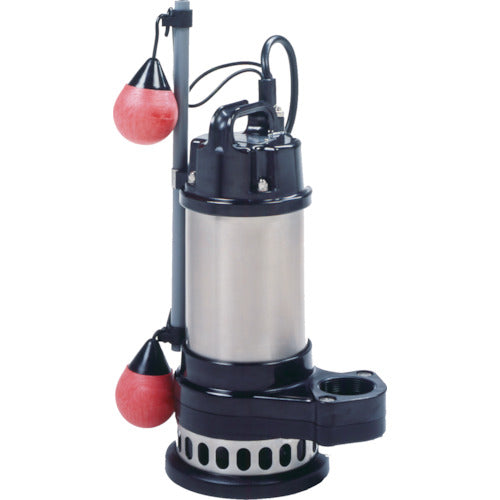

TERADA Underwater Super Techpon Automatic CXA-400T 60HZ 1 unit

Catalogue number: CXA-400T 60HZ Features: ● This pump is resistant to rust and has significantly improved durability with its liquid contact parts made of stainless steel (SUS316) and resin. ● The vortex structure eliminates clogging. ● Equipped with a built-in motor protection device. ● A small, lightweight type that is convenient to carry and install. ● The use of new materials makes it strong and less prone to wear. ● The non-clog impeller reduces clogging. ● The shaft seal uses a combination of a double mechanical seal and an oil seal, both of which have excellent abrasion resistance. ● An automatic reset type motor protection device is built in to prevent motor damage. Applications: ● For wastewater drainage treatment. ● For industrial equipment. ● For building equipment. Specifications: ●Discharge volume (L/min): 150 ●Total head (m): 5.5 ●Frequency (Hz): 60 ●Caliber (mm): 50 ●Power supply (V): Three-phase 200 ●Current (A): 1.9 ●Output (kW): 0.4 ●Total width (mm): 253 ●Total length (mm): 180 ●Total height (mm): 416 ●Foreign object passage diameter (mm): 15 ●Liquid temperature (℃): 0-40 ●Usable water quality: Clean water, sewage, water containing filth ●Power cord length (m): 5 ●Body height (mm): 416 ●Total width (mm): 253 ●Body dimensions (mm) Height: 416 ●Foreign object passage diameter: 15mm or less ●Automatic operation type ●Foreign object passage length (mm): Maximum 100 Material/Finish: ●Casing: Synthetic resin (with glass fiber) ●Impeller: Synthetic resin (with glass fiber) ●Main shaft: SUS316 Set contents/accessories: ● Cab tire cable (5m) ● Companion flange ● Float support rod Note: ● Please be sure to specify the frequency when ordering.
