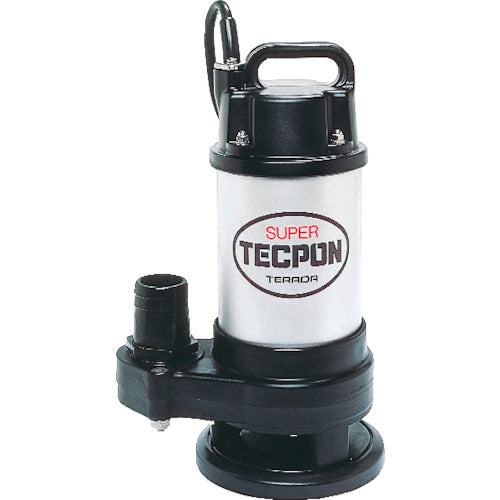

TERADA Underwater Super Techpon Non-automatic 50Hz CX-750 1 unit

Catalogue number: CX-750 Features: * A pump with stainless steel (SUS316) and resin liquid contact parts that is resistant to rust and has significantly increased durability. * Vortex structure eliminates clogging. * Equipped with a built-in motor protection device. * Compact and lightweight type that is easy to carry. * Uses new materials for less wear and greater strength. Applications: * For sewage drainage treatment. * For industrial equipment. * For construction and civil engineering. Specifications: ● Discharge volume (L/min): 240 ● Total head (m): 7.0 ● Frequency (Hz): 50 ● Caliber (mm): 50 ● Power supply (V): Three-phase 200 ● Current (A): 3.2 ● Output (kW): 0.75 ● Overall width (mm): 253 ● Overall length (mm): 180 ● Overall height (mm): 416 ● Foreign object passage diameter (mm): 25 ● Liquid temperature (℃): 0-40 ● Usable water quality: Clean water, sewage, water containing filth ● Power cord length (m): 5 ● Body height (mm): 416 ● Overall width (mm): 253 ● Body dimensions (mm) Height: 416 ● Power cord length: 5m ● Foreign object passage diameter: 25mm or less ● Non-automatic operation type ● Can be customized to accommodate different voltages from a single unit Material/Finish: ●Casing: Synthetic resin (with glass fiber) ●Impeller: Synthetic resin (with glass fiber) ●Main shaft: SUS316 Set contents/Accessories: ●Bamboo shoot (1 piece) ●Hose band (1 piece)
